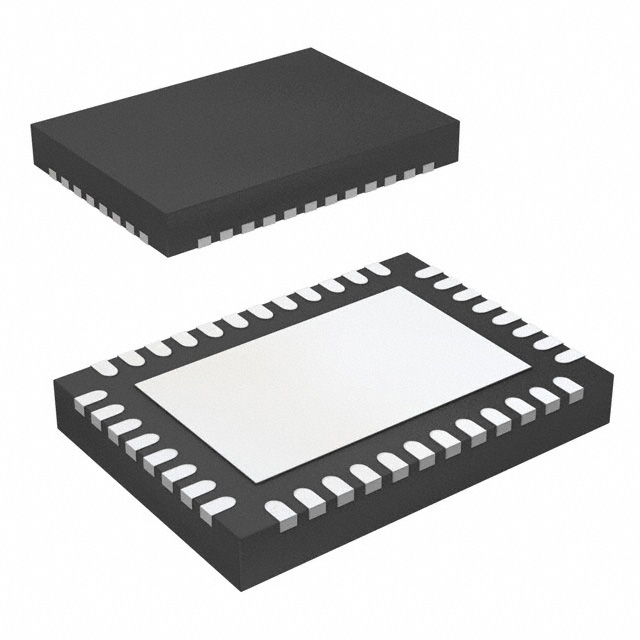

Commodity Model:MCT8316Z0RQRGFRQ1

Trade Name:MCT8316Z0RQRGFRQ1

Data Manual:MCT8316Z0RQRGFRQ1.pdf

Brand:TI

Particular Year:23+

Package:VQFN-40

Delivery Date:New and Original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
MCT8316Z0RQRGFRQ1
Package
VQFN-40
Describe
Multiphase Motor Driver NMOS SPI 40-VQFN (7x5)

Product Description

The MCT8316Z0RQRGFRQ1 provides a single-chip, code-free induction ladder solution for customers driving 12-V brushless DC motors in automobiles. The integration of three 1/2-H bridges with 40 V absolute maximum capability and ultra-low RDS(ON) of 95 mOhms (HV-side and LV-side combined) enables high power drive capability. Current detection uses an integrated current detection function, eliminating the need for external detection resistors. The power management functions of the adjustable buck regulator and LDO generate the necessary voltage rails for the device and can power external circuits.


The MCT8316Z0RQRGFRQ1 implements inductive trapezoidal control in a fixed-function state machine, thus eliminating the need for an external microcontroller to rotate a brushless DC motor. The device integrates three analogue Hall comparators for position sensing to implement inductive ladder brushless DC motor control. The control scheme is highly configurable via hardware pins or register settings, including motor current limit behaviour and fault response. Speed can be controlled via the PWM input.


Device Specifications

Motor Type - Stepper: Multi-Phase

Motor Type - AC, DC: Brushless DC (BLDC)

Function: Driver - Fully Integrated, Control and Power Stage

Output Configuration: Half Bridge (3)

Interface: SPI

Technology: NMOS

Stepping resolution: -

Applications: Automotive

Current - Output: 8A

Voltage - Supply: 4.5V ~ 35V

Voltage - Load: 4.5V ~ 35V

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

Package/Shell: 40-VFQFN Exposed Pad

Supplier Device Package: 40-VQFN (7x5)


Applications

Brushless DC (BLDC) motor modules

Automotive LiDAR

Small automotive fans and pumps

Headlight levelling

Associated Products

Model

Brand

Package

Quantity

Describe

L9997ND013TR

ST

SO-20

4000

Motor driver CMOS, DMOS parallel 20-SO

NCV7601PG

TI

PDIP-16

3000

Power switch/driver 1:1 Bipolar 1.8A 16-PDIP

NCV7720DQAR2G

ON

SSOP24

5000

Motor Driver Power MOSFET SPI 24-SSOP-EP

L6229D

ST

SO-24

3600

DMOS driver for three-phase brushless DC motors

TLE9166EQ

INFINEON

TSDSO-32

2500

Motor driver NMOS PWM, SPI PG-TSDSO-32

TLE94003EP

INFINEON

TSDSO-14

2500

Half-bridge (3) driver DC motor, universal DMOS 2A TSDSO-14

IMC302A-F064

INFINEON

LQFP-64

3000

PMSM/BLDC motor & PFC controller with additional 32-bit microcontroller

IMC101T-F06

INFINEON

LQFP-64

2000

Motor driver simulation, PWM PG-LQFP-64

IMC101T-F048

INFINEON

LQFP-48

2500

Motor driver CMOS simulation, PWM PG-LQFP-48

L6482HTR

ST

HTSSOP38

2500

Bipolar Motor Driver Power MOSFET SPI 38-HTSSOP

FAQ

  • 1.Is the inventory and price seen on the platform accurate?

    A: all online goods on the shelves can be ordered online, but considering the large liquidity of spot inventory, it is not possible to achieve 100% accuracy at present. In case of any abnormality, you can contact our company online and give the corresponding solution.

  • 2.Are all our products genuine?

    A: our self-supporting products are from cooperative domestic and foreign original factories or authorized agents, and the source can be traced to ensure the original and authentic products.

  • 3.Can you provide the qualification certificate of the original factory or agent?

    A: at present, our self-employed brands TI,ST,ADI,NXP,LATTICE,CYPRESS,INFINEON,XILINX and other first-line brands. Other channels are the original factory and agency channels. If necessary, we can communicate and confirm according to the specific brand and model.

  • 4.Can I make an inquiry through the company's website?

    A: You can inquire through the website, or by phone and email.

  • 5.When can I deliver the goods after placing an order? How long will it take to get there?

    A: the delivery date is marked in most commodity information. You can estimate the delivery time of the commodity according to the delivery date. The specific arrival time depends on the warehouse where the commodity is located and the logistics mode you choose.

  • 6.Can the company issue an invoice?

    A: you can issue ordinary invoices for individual users or special VAT invoices for enterprise users.
