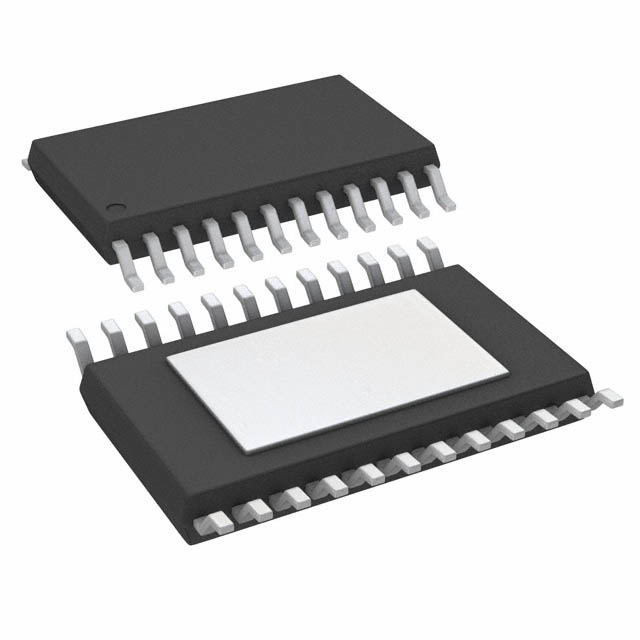

Commodity Model:DRV8873HPWPRQ1

Trade Name:DRV8873HPWPRQ1

Data Manual:DRV8873HPWPRQ1.pdf

Brand:TI

Particular Year:23+

Package:HTSSOP-24

Delivery Date:New and Original

Stock: 8000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
DRV8873HPWPRQ1
Package
HTSSOP-24
Describe
Automotive 40V, 10A H-Bridge Motor Driver with Integrated Current Sense and Current Sense Feedback

Product Description

The DRV8873HPWPRQ1 device is an integrated driver IC for driving brushed DC motors in automotive applications. two logic inputs control the H-bridge driver, which consists of four N-channel MOSFETs capable of bi-directionally driving the motor at peak currents of up to 10 A. The device is powered from a single supply and supports a wide input supply voltage range of 4.5 V to 38 V. The device can be easily connected to the controller circuit via the PH/EN or PWM interface.


The device can be easily connected to the controller circuitry via the PH/EN or PWM interface. Alternatively, independent half-bridge control can be used to drive two solenoid loads.


Features

- Compliant with AEC-Q100 for automotive applications

- Device Temperature Class 1: -40°C to +125°C, TA

- N-Channel H-Bridge Motor Drivers

- Drives one bi-directional brushed DC motor

- Two unidirectional brush DC motors

- Solenoid or other resistive and inductive loads

- 4.5V to 38V operating voltage range

- 10A peak current drive capability

- Low HS + LS RDS(ON)

- 150mΩ at TJ= 25°C and 13.5V

- 250mΩ at TJ= 150°C and 13.5V

- Integrated Current Sense

- Proportional Current Output (IPROPI)

- Configurable Control Interface

- PH/EN

- PWM (IN1/IN2)

- Independent half-bridge control

- Supports 1.8V, 3.3V, 5V logic inputs

- SPI or hardware interface options

- Small Package and Form Factor

- 24-pin HTSSOP PowerPAD™ IC package

- Protection Features

- VM Undervoltage Lockout (UVLO)

- Charge Pump Undervoltage (CPUV)

- Overcurrent protection (OCP)

- Output short-circuit to battery and ground short-circuit protection

- Open Load Detection

- Thermal Shutdown (TSD)

- Fault condition output (nFAULT/SPI)

- Spread Spectrum Clock for Low EMI

- Functionally Safe

- Documentation to aid in the design of functionally safe systems


Applications

- Electronic throttle control

- Exhaust gas recirculation

- Side mirror tilt

- Electronic gearshift

- Air flow steering valve control
