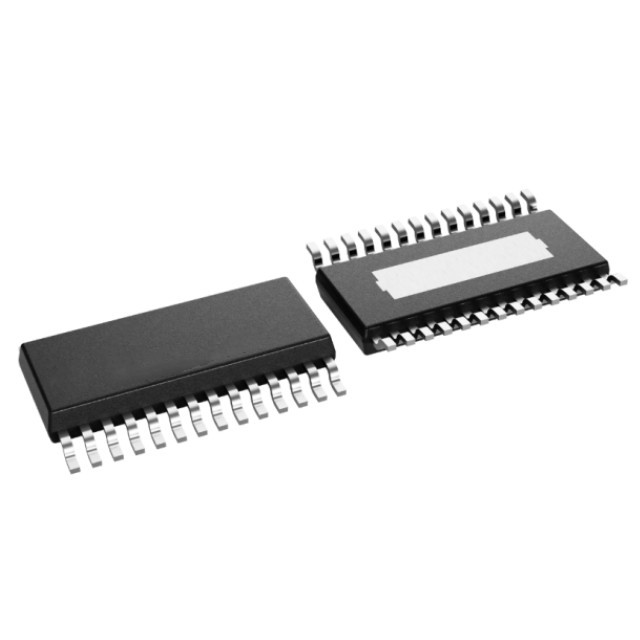

The DRV8244SQDGQRQ1 40V 21A H-bridge driver is a fully integrated H-bridge driver for a variety of automotive applications. The device can be configured as a single full-bridge driver or two independent half-bridge drivers. Designed in the BiCMOS high power process technology node, this monolithic device family in a power package offers excellent power handling and thermal performance. The devices also feature a compact package size for easy layout, providing EMI control, accuracy, current sensing, robustness and diagnostics. The family also features the same pinout with scalable RON (current capability) to support different loads.

Product Attributes

Motor Type - Stepper: Bipolar

Motor Type - AC, DC: Brushed DC

Function: Driver - Fully Integrated, Control and Power Stage

Output Configuration: Half Bridge (2)

Interface: SPI

Technology: Power MOSFET

Stepping Resolution: -

Applications: Automotive Grade

Current - Output: 21A

Voltage - Supply: 4.5V ~ 5.5V

Voltage - Load: 4.5V ~ 35V

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

Package/Case: 28-PowerTSSOP (0.118", 3.00mm Width)

Supplier Device Package: 28-HTSSOP

Applications

Automotive brushed DC motors, solenoids

Door modules, wiper modules, luggage compartment and seat modules

Body control modules (BCM)

Electronic gear shifters

Steering systems

Gas engine systems

On-board chargers
