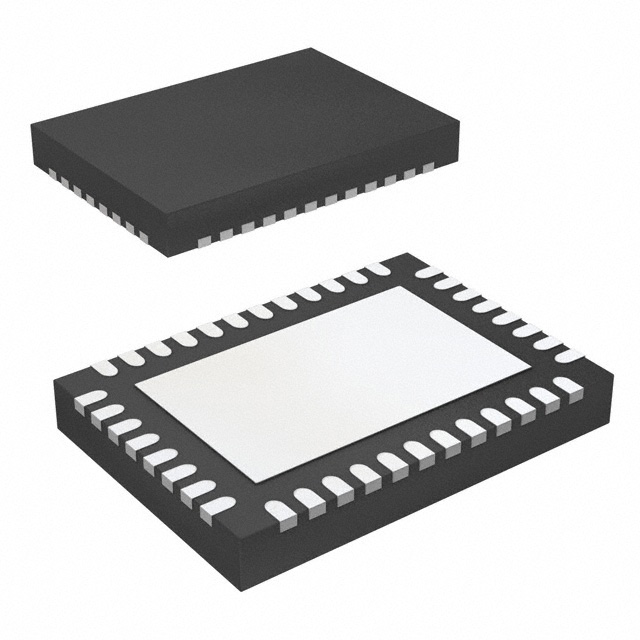

Commodity Model:MCT8316Z0TQRGFRQ1

Trade Name:MCT8316Z0TQRGFRQ1

Data Manual:MCT8316Z0TQRGFRQ1.pdf

Brand:TI

Particular Year:23+

Package:VQFN-40

Delivery Date:New and Original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
MCT8316Z0TQRGFRQ1
Package
VQFN-40
Describe
Multiphase Motor Driver NMOS Hardware 40-VQFN (7x5)

Product Description

The MCT8316Z0TQRGFRQ1 provides a single-chip, code-free induction ladder solution for customers driving 12-V brushless DC motors in automobiles. The integration of three 1/2-H bridges with 40 V absolute maximum capability and ultra-low RDS(ON) of 95 mOhms (HV-side and LV-side combined) enables high power drive capability. Current detection uses an integrated current detection function, eliminating the need for external detection resistors. The power management functions of the adjustable buck regulator and LDO generate the necessary voltage rails for the device and can power external circuits.


The MCT8316Z0TQRGFRQ1 implements inductive trapezoidal control in a fixed-function state machine, thus eliminating the need for an external microcontroller to rotate a brushless DC motor. The device integrates three analogue Hall comparators for position sensing to implement inductive ladder brushless DC motor control. The control scheme is highly configurable via hardware pins or register settings, including motor current limit behaviour and fault response. Speed can be controlled via the PWM input.


Device Specifications

Motor Type - Stepper: Multi-Phase

Motor Type - AC, DC: Brushless DC (BLDC)

Function: Driver - Fully Integrated, Control and Power Stage

Output Configuration: Half Bridge (3)

Interface: Hardware

Technology: NMOS

Stepping resolution: -

Applications: Automotive

Current - Output: 8A

Voltage - Supply: 4.5V ~ 35V

Voltage - Load: 4.5V ~ 35V

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

Package/Shell: 40-VFQFN Exposed Pad

Supplier Device Package: 40-VQFN (7x5)


Applications

Brushless DC (BLDC) motor modules

Automotive LiDAR

Small automotive fans and pumps

Headlight levelling

Associated Products

Model

Brand

Package

Quantity

Describe

IMC302A-F064

INFINEON

LQFP-64

3000

PMSM/BLDC motor & PFC controller with additional 32-bit microcontroller

IMC101T-F06

INFINEON

LQFP-64

2000

Motor driver simulation, PWM PG-LQFP-64

IMC101T-F048

INFINEON

LQFP-48

2500

Motor driver CMOS simulation, PWM PG-LQFP-48

L6482HTR

ST

HTSSOP38

2500

Bipolar Motor Driver Power MOSFET SPI 38-HTSSOP

DRV8841PWPR

TI

HTSS0P-28

50000

45V, 2.5A Bipolar Stepper or 2-Way H-Bridge Motor Driver IC with Current Regulation and PWM Control

LB11600JV-TLM-E

ON

SSOP-30

1000

Motor Driver PWM 4.5V-14V 30-SSOP

DRV110APWR

TI

TSSOP-14

6000

20V, 0.33A single channel relay low-side driver with integrated current regulation

TLE9883QTA62

INFINEON

TQFP-48

3000

MOTIX™ Two-Phase Motor Driver with CAN-FD, TQFP-48

TLE98832QTW62S

INFINEON

TQFP-48

3000

MOTIX™ Full Bridge Driver IC - 2-Phase Motor Driver, TQFP-48

TLE98812QTW60

INFINEON

TQFP-48

3000

MOTIX™ Full Bridge Driver IC - 2-Phase Motor Driver, TQFP-48
