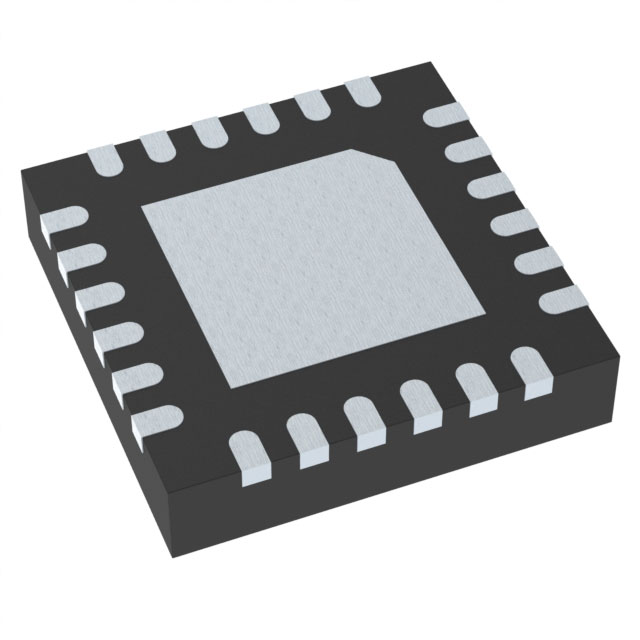

For picture reference, please see the specifications
< >

Commodity Model:DRV8889QWRGERQ1

Trade Name:DRV8889QWRGERQ1

Data Manual:DRV8889QWRGERQ1.pdf

Brand:TI

Particular Year:23+

Package:24-VQFN

Delivery Date:New and Original

Stock: 15000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
DRV8889QWRGERQ1
Package
24-VQFN
Describe
Automotive 50V, 1.5A Bipolar Stepper Motor Driver with Integrated Current Sense and Stall Detection

Product Description

The DRV8889QWRGERQ1 is a fully integrated stepper motor driver that supports full-scale currents up to 1.5A with an internal microstepping indexer, intelligent tuning attenuation, advanced stall detection algorithms, and integrated current detection.


Features

- Complies with AEC-Q100 for automotive applications

- Up to 1/256 microsteps

- Integrated current sense function

- Eliminates need for sense resistors

- Intelligent tuned attenuation technology, fixed slow and mixed attenuation options

- 4.5V to 45V operating supply voltage range

- Pin-to-Pin RDS(ON) Models:

- DRV8889/A-Q1: 900mΩ HS + LS at 25°C

- High current capacity per bridge

- DRV8889/A-Q1: 2.4A peak, 1.5A full scale

- TRQ_DAC bit to adjust full-scale current

- Configurable turn-off time PWM chopper

- Simple STEP/DIR interface

- SPI with daisy-chain support

- Low current sleep mode (2μA)

- Programmable output slew rate

- Programmable Open Load Detect Time with DRV8889A-Q1

- Spread spectrum clock minimises EMI

- Protection Features

- VM undervoltage lockout

- Overcurrent protection

- Stall detection

- Open Load Detection

- Thermal Warning and Shutdown

- Under Temperature Warning

- Fault condition indication pin (nFAULT)

- Providing Functional Safety

- Documentation to assist in the design of functionally safe systems


Applications

- Automotive bipolar stepper motors

- Headlight position adjustment

- Head-up display (HUD)

- HVAC stepper motors

- Electronic Fuel Injection (EFI)
