Trade Name:DRV10983SQPWPRQ1
Data Manual:DRV10983SQPWPRQ1.pdf
Brand:TI
Particular Year:23+

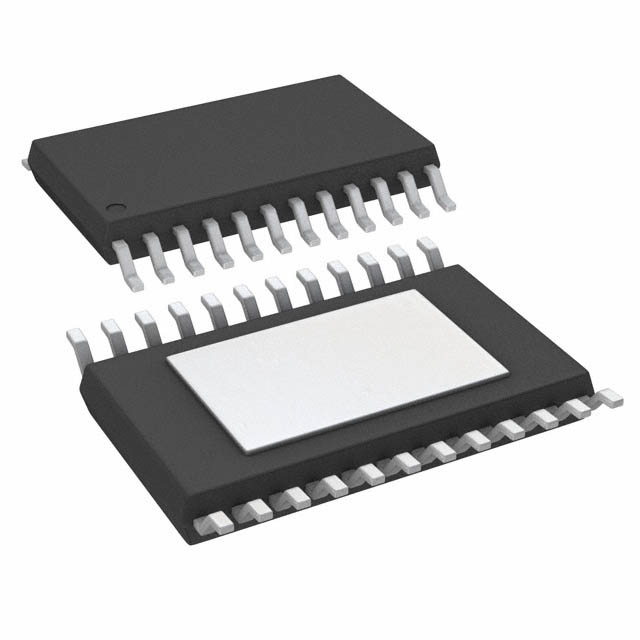

Package:HTSSOP-24
Delivery Date:New and Original
Stock: 2245pcs
The DRV10983SQPWPRQ1 3-Phase Sensorless BLDC Motor Driver is a 3-phase sensorless motor driver with an integrated power MOSFET capable of delivering up to 2A of continuous drive current. The device is specifically designed for cost-sensitive, low noise/low external component count applications.The DRV10983 uses a patented sensorless control scheme to provide a continuous sinusoidal drive, dramatically reducing pure tone, which would normally be achieved by phase switching. The device interface is designed to be simple and flexible. The motor can be controlled directly via PWM, analogue, or I2C inputs. Motor speed feedback is available through the FG pin, or I2C.
Specification
Product Category: Motor/Motion/Ignition Controllers and Drivers
Type: 3 Phase
Operating supply voltage: 8 V to 28 V
Output Current: 2 A
Operating supply current: 11 mA
Minimum operating temperature: - 40 C
Maximum operating temperature: + 125 C
Mounting style: SMD/SMT
Package / Case: HTSSOP-24
Qualification: AEC-Q100
Development Kit: DRV10983Q1EVM
Features: Buck-Buck Converter, Initial Position Detection (IPD), Rotor Lock Protection, SPI/I2C, Integrated
Load Voltage Rating: 6.2 V to 28 V
Humidity Sensitivity: Yes
Number of Outputs: 3 Outputs
Operating frequency: 100 kHz
Output voltage: 30 V
Series: DRV10983-Q1
Application
Small automotive pumps and fans
Seat ventilation fans
Motorbike fuel pumps
Hybrid car battery cooling fans
