The DRV10983QPWPRQ1 3-Phase Sensorless BLDC Motor Driver is a 3-phase sensorless motor driver with an integrated power MOSFET capable of delivering up to 2A of continuous drive current. The device is specifically designed for cost-sensitive, low noise/low external component count applications.The DRV10983 uses a patented sensorless control scheme to provide a continuous sinusoidal drive, dramatically reducing pure tone, which would normally be achieved by phase switching. The device interface is designed to be simple and flexible. The motor can be controlled directly via PWM, analogue, or I2C inputs. Motor speed feedback is available through the FG pin, or I2C.

Specification

Product Category: Motor/Motion/Ignition Controllers and Drivers

Type: 3 Phase

Operating supply voltage: 8 V to 28 V

Output Current: 2 A

Operating supply current: 11 mA

Minimum operating temperature: - 40 C

Maximum operating temperature: + 125 C

Mounting style: SMD/SMT

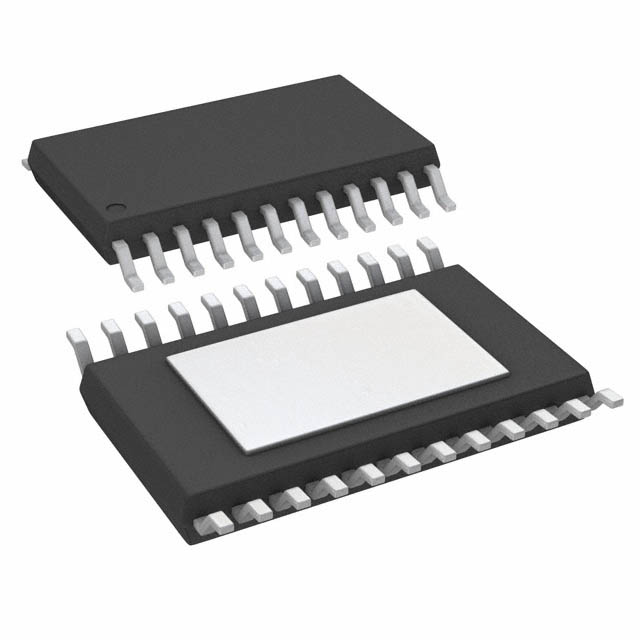

Package / Case: HTSSOP-24

Qualification: AEC-Q100

Development Kit: DRV10983Q1EVM

Features: Buck-Buck Converter, Initial Position Detection (IPD), Rotor Lock Protection, SPI/I2C, Integrated

Load Voltage Rating: 6.2 V to 28 V

Humidity Sensitivity: Yes

Number of Outputs: 3 Outputs

Operating frequency: 100 kHz

Output voltage: 30 V

Series: DRV10983-Q1

Application

Small automotive pumps and fans

Seat ventilation fans

Motorbike fuel pumps

Hybrid car battery cooling fans
