The LM61495Q5RPHRQ1 buck regulator series are automotive specific regulators that provide fixed or adjustable output voltages. 1 V to 95% of the desired input voltage. These regulators operate over a wide input voltage range of 3 to 36 V. 3 to 36 V with transient tolerance up to 42 V. The family is designed to reduce EMI. The devices feature pin-selectable spread spectrum and adjustable SW node rise time. Dual Random Spread Spectrum (DRSS) hopping is set to ±4% (typical), which significantly reduces peak emissions through a combination of triangular and pseudo waveforms. Dual Random Spread Spectrum (DRSS) modulation to significantly reduce peak emissions and advanced techniques to reduce output voltage ripple caused by spread spectrum modulation.

Product Attributes

Function: Buck

Output Configuration: Positive

Topology: Buck

Output Type: Fixed

Number of Outputs: 1

Voltage - Input (Min): 3V

Voltage - Input (Max): 36V

Voltage - Output (Min/Fixed): 5V

Voltage - Output (Maximum): -

Current - Output: 10A

Frequency - Switch: 200kHz ~ 2.2MHz

Synchronous Rectifier: Yes

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting Type: Surface Mount, Wettable Sides

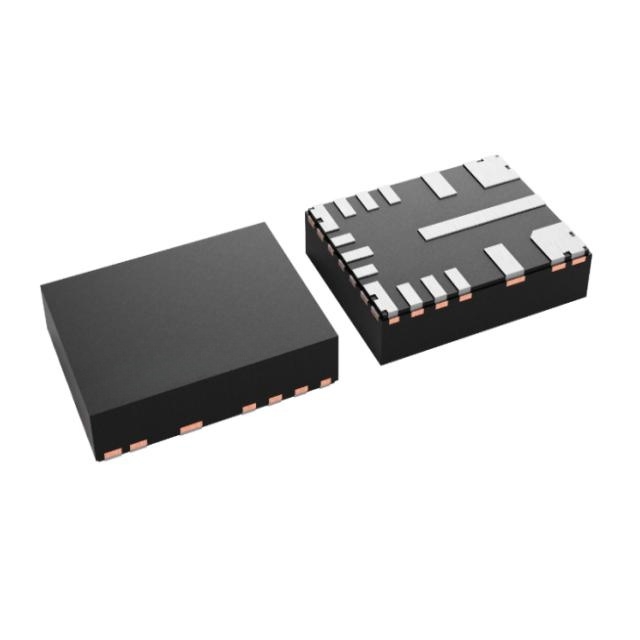

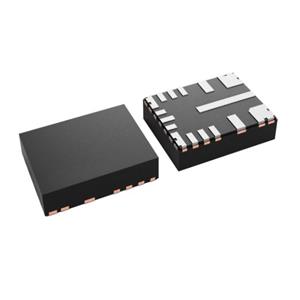

Package/Housing: 16-PowerVFQFN

Supplier Device Package: 16-VQFN-HR (4.5x3.5)

Applications

● Automotive infotainment systems

● Dashboards

● ADAS
