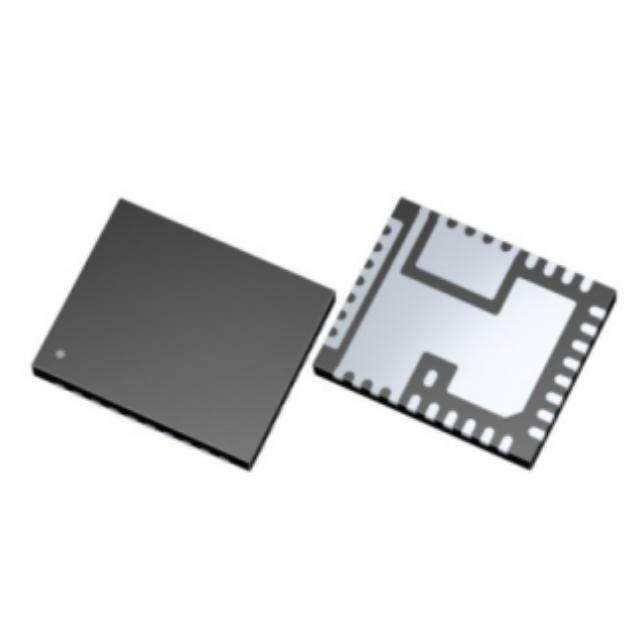

The TDA387250000AUMA1 is an easy-to-use, fully integrated, high efficiency DC-DC regulator. The on-board PWMc87tr855er a7d O9t2MOS™ FET integrates a bootstrap diode, making the TDA387250000AUMA1 a small form factor solution that provides highly efficient power delivery. It also features a fast constant on-time (COT) control scheme that simplifies design efforts and enables fast transient response.The TDA387250000AUMA1 is a versatile regulator that operates over a wide range of input and output voltages, offers programmable switching frequencies from 400 kHz to 2 MHz, and provides eight unique selectable current limits. It has a programmable DC load line that provides an additional tool for managing transient response.

Product Attributes

Function: Buck

Output Configuration: Positive

Topology: Buck

Output Type: Adjustable

Number of Outputs: 1

Voltage - Input (Min): 3V

Voltage - Input (Max): 17V

Voltage - Output (Min/Fixed): 0.25V

Voltage - Output (Max): 5.12V

Current - Output: 25A

Frequency - Switch: 400kHz ~ 2MHz

Synchronous Rectifier: Yes

Operating Temperature: -40°C ~ 125°C (TJ)

Mounting Type: Surface Mount

Package/Housing: 36-PowerVFQFN

Supplier Device Package: PG-IQFN-36-3

Applications

● Server applications

● Storage applications

● Telecom and datacom applications

● Distributed point-of-load power architectures
