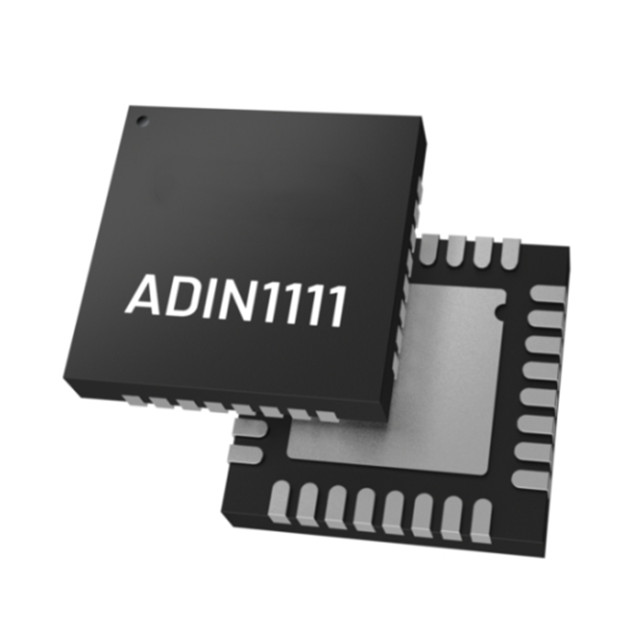

The ADIN1111CCPZ is a single-port 10BASE-T1L Ethernet MAC-PHY transceiver launched by ADI, specifically designed for industrial Ethernet applications. It complies with the IEEE 802.3cg-2019 standard and supports cable transmission up to 1700 meters in length.

Detailed parameters

Product: Ethernet MAC-PHY

Standard: 10BASE-T1L

Number of Transceivers: 1 transceiver

Data rate: 10 Mb/s

Interface type: SPI

Power supply voltage - minimum: 1.71V

Power supply voltage - maximum: 3.46V

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 105 ° C

Installation style: SMD/SMT

Packaging/Cabinet: LFCSP-32

The ADIN1111CCPZ communicates with the host controller via the SPI interface, supports low-power design (with a power consumption of only 50 milliwatts under a single power supply), and integrates voltage monitoring and reset circuits to enhance system stability.

In addition, the ADIN1111CCPZ integrates voltage and power supply monitoring and power-on reset (POR) circuits to enhance system-level robustness, and is equipped with a 4-wire SPI for communication between the MAC interface and the host processor.

Typical applications

Building automation and fire safety

Factory automation

Status monitoring and machine connection
