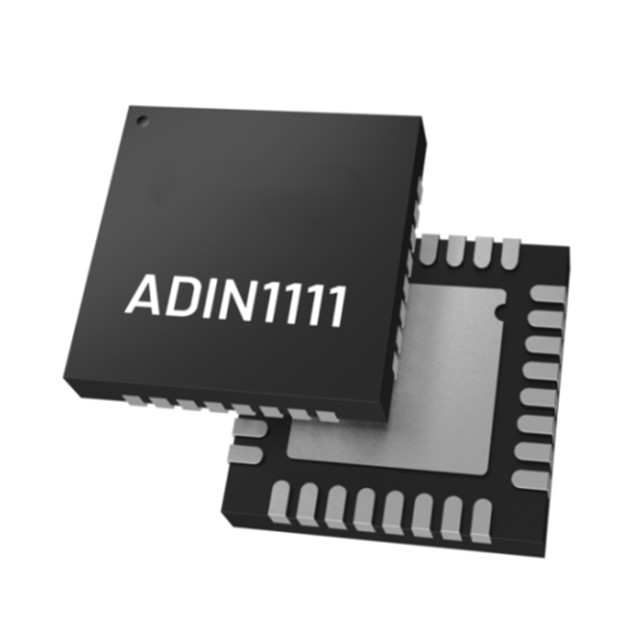

The ADIN1111BCPZ is a 10BASE-T1L Ethernet MAC-PHY transceiver designed for industrial Ethernet applications. It complies with the IEEE® 802.3cg-2019™ Ethernet standard and supports long-range 10Mbps single-pair Ethernet (SPE) applications. The ultra-low power, single-port 10BASE-T1L transceiver features an integrated Media Access Control (MAC) interface, facilitating direct connection to various host controllers via the Serial Peripheral Interface (SPI). This SPI can use low-power processors without integrating a MAC, and the overall system-level power consumption is very low.

Technical parameters

Product: Ethernet MAC-PHY

Standard: 10BASE-T1L

Number of Transceivers: 1 transceiver

Data rate: 10 Mb/s

Interface type: SPI

Power supply voltage - minimum: 1.71V

Power supply voltage - maximum: 3.46V

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 85 ° C

Installation style: SMD/SMT

Packaging/Cabinet: LFCSP-32

The ADIN1111BCPZ is specifically designed for edge node sensors and field instrumentation deployed in building, factory and process automation applications. This device is powered by a single power rail of 1.8V or 3.3V and supports 1.0V and 2.4V. With the internal hybrid resistor and terminal resistor, the ADIN1111BCPZ can be directly connected to the MDI interface.
