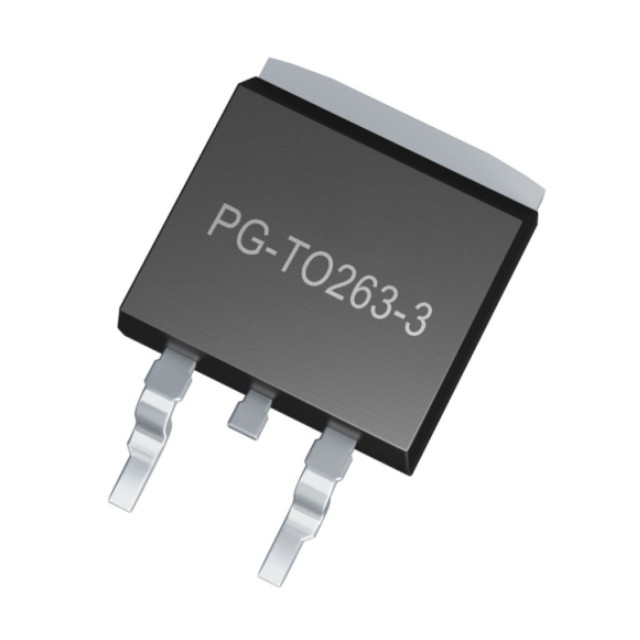

IPB120N10S4-03 is a 100V, OptiMOS™-T automotive MOSFET transistor in PG-TO263-3 package. Product details are as follows:

Model: IPB120N10S4-03

Package: PG-TO263-3

Type: Automotive MOSFET transistor

Applications: Vehicle gateways, DIN rail power solutions, central inverter solutions

IPB120N10S4-03 Specifications:

Series: OptiMOS™

FET Type: N-channel

Technology: MOSFET (Metal Oxide Semiconductor)

Drain-Source Voltage (Vdss): 100 V

Continuous Drain Current at 25°C (Id): 120 A (Tc)

Drive Voltage (Maximum Rds On, Minimum Rds On): 10 V

On-Resistance at Different Id and Vgs (Maximum): 3.5 mΩ @ 100 A, 10 V

Vgs(th) at different Id (Max): 3.5V @ 180µA

Gate Charge (Qg) at different Vgs (Max): 140 nC @ 10 V

Vgs (Max): ±20V

Input Capacitance (Ciss) at different Vds (Max): 10120 pF @ 25 V

Power Dissipation (Max): 250W (Tc)

Operating Temperature: -55°C to 175°C (TJ)

Mounting Type: Surface Mount

Supplier Device Package: PG-TO263-3

Package/Case: TO-263-3, D2PAK (2 leads + tab), TO-263AB

IPB120N10S4-03 Product Features:

N-channel normal-off enhancement mode

Compliant with automotive AEC Q101 standard

MSL1 with maximum reflow temperature up to 260°C peak

Operating temperature up to 175°C

100% Avalanche tested

PPAP-supported device
