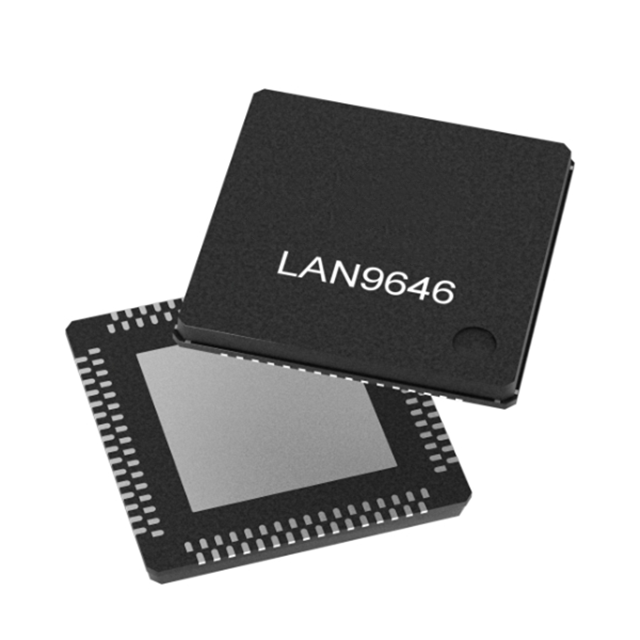

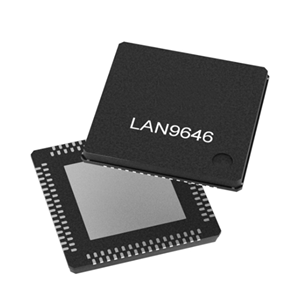

The LAN9646T-I/MXX Ethernet switch is a fully integrated managed Layer 2, 6-port gigabit Ethernet switch with advanced features. This switch has four ports that support 10/100/1000Mbps PHY, and the other two can be configured as SGMII, RGMII, MII or RMII interfaces to connect to the host processor or external PHY. The LAN9646T-I/MXX can fully access the registers via SPI, I2C or optional in-band management (via any data port), and the MIM interface provides access to the PHY registers.

Security features include authentication based on IEEE 802.1X ports and ACL filtering. The LAN9646T-I/MXX also supports power management functions such as Energy Saving Ethernet (EEE) to achieve an energy-saving environment.

Core parameters

Protocol: Ethernet

Function: Switch

Interfaces: I2C, MII, RGMII, RMII, SGMII, SPI

Standard: IEEE 802.3, 10/100/1000 Base-T/TX PHY

Voltage - Power supply: 1.14V to 1.26V, 2.375V to 2.625V

Current - Power supply: 680mA (typical value

Operating temperature: -40°C to 85°C (TA)

Package/Housing: 132-VFQFN

Application scenarios

Independent 10/100/1000Mbps Ethernet switch

VoIP infrastructure switch

Broadband gateway/firewall

Wi-Fi access point

Integrated DSL/ cable modem

Security/monitoring system

Industrial control/automation switches

Networked measurement and control system
