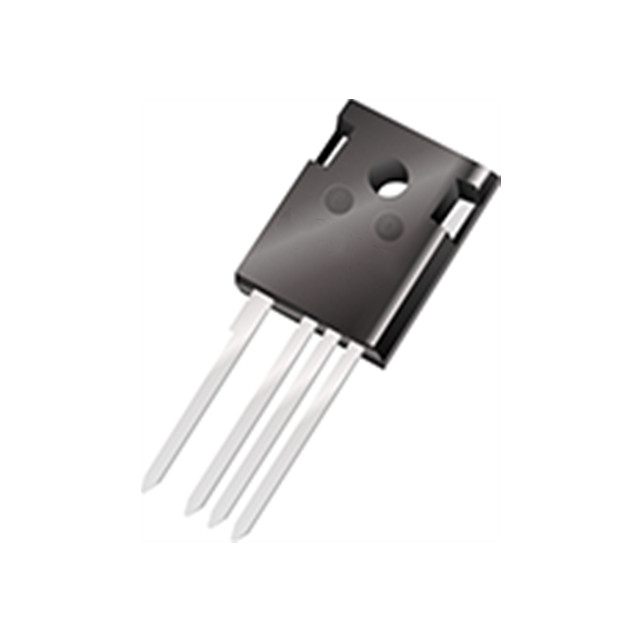

onsemi's UG4SC075006K4S "Comit-FET" integrates a 750 V SiC JFET and a low-voltage Si MOSFET into a single TO247-4 package. This innovative approach enables users to create circuits to achieve constantly breaking switches while taking advantage of the benefits of normally conducting SiC JFETs. These advantages include ultra-low on-resistance (RDS (on)) to minimize conduction losses, as well as the outstanding robustness characteristics of the simplified JFET device structure, enabling it to handle the high-energy switching required in circuit protection applications. For switch-mode power conversion applications, the UG4SC075006K4S offers separate access to the JFET and MOSFET gates to enhance speed control and facilitate the parallel connection of multiple devices.

Main specifications

FET type: N-channel

Technology: SiCFET (Silicon carbide)

Drain-source voltage (Vdss) : 750 V

Current at 25°C - continuous drain (Id) : 120A (Tc)

Drive voltage (maximum Rds On, minimum Rds On) : 12V

On-resistance (maximum value) at different ids and Vgs: 7.5 milliohms @ 80A, 12V

Vgs(th) (maximum value) at different ids: 3.7V @ 180mA

Gate charge (Qg) at different Vgs (maximum value) : 164 nC @ 15 V

Vgs (maximum value) : ±20V

Input capacitance (Ciss) at different Vds (maximum value) : 8374 pF @ 400 V

FET function: -

Power dissipation (maximum) : 714W (Tc)

Operating temperature: -55°C to 175°C (TJ)

Installation type: Through hole

Encapsulation: TO-247-4

Typical applications

• Solid State/semiconductor circuit breakers

• Solid State/semiconductor relays

• Battery disconnected

• Surge protection

• Surge current control

• High-power switching mode converter (> 25kW)
