The NL3V2T244MUTAG voltage level converter is a 2-bit configurable dual power level converter with 3-state output. The input An and output Bn ports are designed to track two different power rails (VCCA and VCCB). Both of these power rails can be configured within the range of 0.9V to 3.6V and support universal low-voltage conversion from the input An to the output Bn port. The NL3V2T244MUTAG is A 2-bit level converter that supports non-inverting conversion from port A to port B. This voltage level converter is suitable for use in mobile phones, personal digital assistants (PDAs), automotive and industrial applications.

Core parameters

Logic type: Level Translator

Data rate: 380 Mb/s

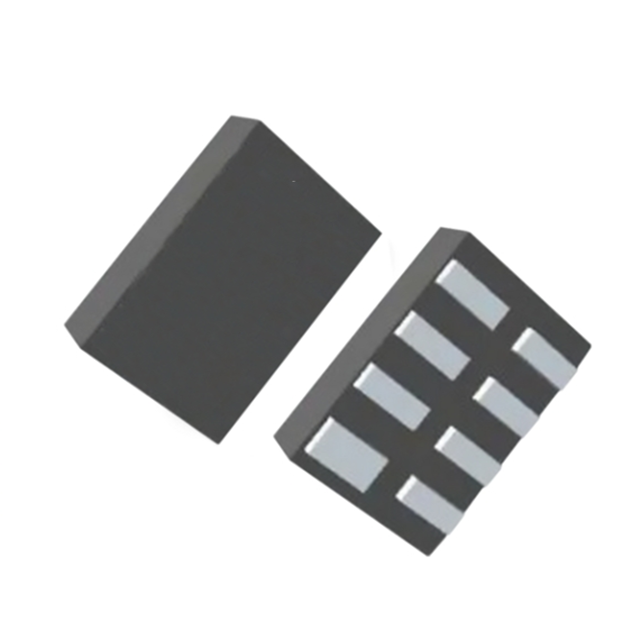

Packaging/Cabinet: UDFN-8

Power supply voltage - maximum: 3.6V

Power supply voltage - minimum: 900 mV

Series: NL3V2T244

Propagation delay time: 2.8 ns

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 125 ° C

Installation style: SMD/SMT

Input type: LVTTL

Number of channels: 2 channels

Working power supply current: 100 mA

Output type: 3-State

Pd- Power dissipation: 541 mW

Application scenarios

The NL3V2T244MUTAG is widely used in the following scenarios:

Mobile phone

Personal Digital Assistant (PDA

Other portable devices

Automobile

Industry
