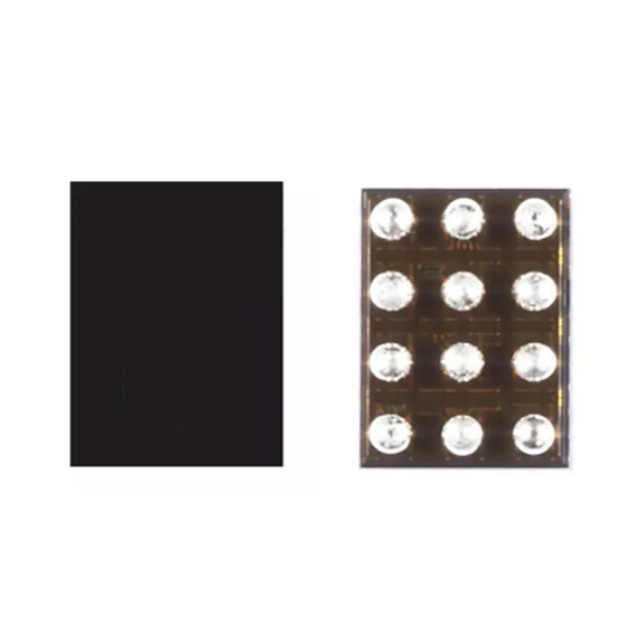

The P3A1604UKAZ is a 4-bit dual power conversion transceiver with automatic direction sensing and support for bidirectional voltage level conversion. The power supply voltage range of P3A1604UKAZ is relatively wide, with VCCA ranging from 0.72V to 1.98V and VCCB from 1.62V to 3.63V. It supports I3C/I²C/SMBus/SPI applications. This device uses advanced process nodes to help convert the latest SoC/ASIC/MCU, so as to connect with peripherals on a higher voltage rail.

Main features

The power supply voltage range is relatively wide

VCCA: 0.72V to 1.98V, VCCB: 1.62V to 3.63V

The A-side and OE inputs can accept voltages up to 1.98V

The B-side input can accept a voltage as high as 3.63V

Temperature range: Specified as -40°C to +125°C

Supports I3C/I²C/SMBus/SPI interfaces

Bidirectional voltage level conversion with automatic directional sensing

No power sorting required

Maximum data rate per bit (DDR) : Open leakage: 6.8Mbps(3.4MHz), push-pull: 40Mbps(20MHz)

Longer single trigger pulses are used to drive larger capacitive loads while significantly reducing ringing and overshoot

The I/O latch current is 100mA, in compliance with the JESD 78 standard

The target application scenarios of P3A1604UKAZ include:

Industrial control

Smartwatches and wristbands

Consumer electronics

Smart phone
