LTC3125EDCB (Power Management PMIC) with a 1.2A input current limit, synchronous boost-type DC/DC converter

The LTC3125EDCB is a high-efficiency, synchronous boost-type DC/DC converter with an accurate, programmable average input current limit. The resistor-programmable average input current limit has an accuracy of 5% at 500mA and is suitable for a wide range of applications.

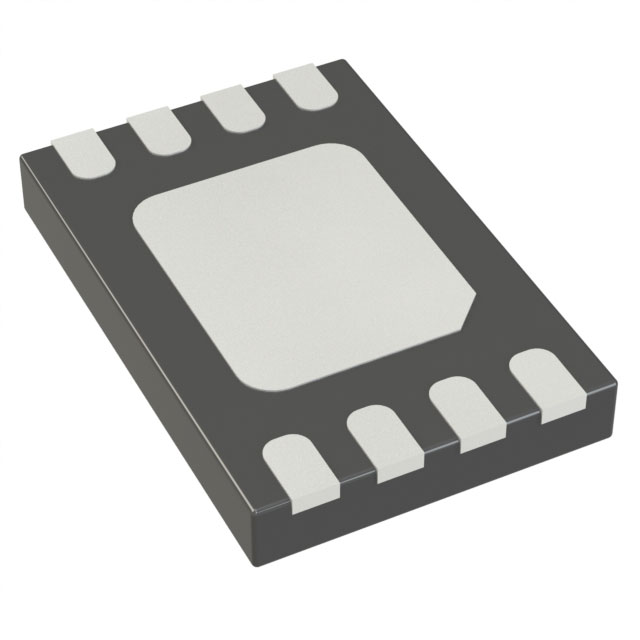

Other features of the LTC3125EDCB include <1μA quiescent current, short-circuit and thermal overload protection. The LTC3125 is available in a flat 0.75mm x 2mm x 3mm DFN package.

Product Details:

Model: LTC3125EDCB

Product Type: Switching Regulator

Mounting Style: SMD/SMT

Package/Case: DFN-8

Topology: Boost

Output Voltage: 2 V to 5.25 V

Output Current:    1 A

Number of Outputs:    1 Output

Input Voltage - Minimum:    1.6 V

Input Voltage - Maximum:    5.5 V

Quiescent Current:    300 uA

Switching Frequency:    1.6 MHz

Minimum Operating Temperature:    -40°C

Maximum Operating Temperature:    +125°C

Input Voltage:    1.8 V to 5.5 V

Operating Supply Current:    15 uA

LTC3125EDCB Applications:

GSM/GPRS PCMCIA/CompactFlash PC Card Modems

Wireless Emergency Locator Devices

Portable Radio Devices

Supercapacitor Chargers
