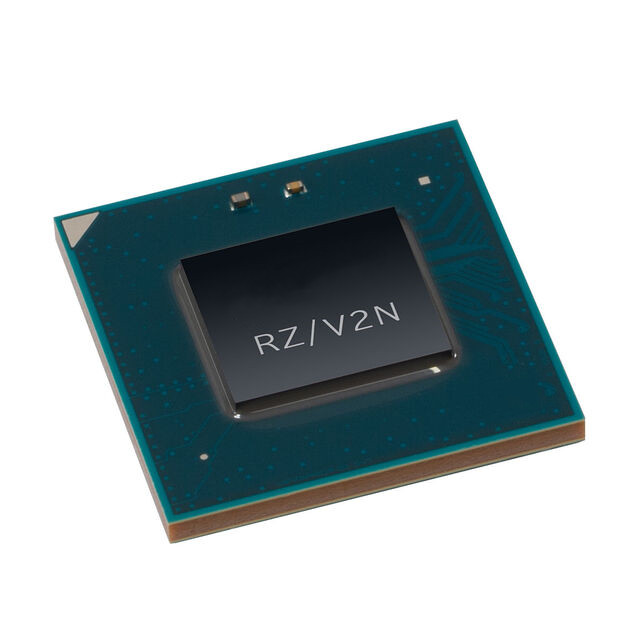

The R9A09G056N42GBG is a quad-core visual AI microprocessor (MPU) launched by Renesas, belonging to the RZ/V2N series. It is specifically designed for applications that require high-efficiency AI processing. The R9A09G056N42GBG microprocessor is mainly applied in fields such as surveillance cameras, mobile robots, and driver monitoring systems (DMS).

Core performance of R9A09G056N42GBG

It adopts the DRP-AI3 AI accelerator, supporting up to 15 TOPS (sparse matrix operations) of AI performance and achieving an energy efficiency ratio of 10 TOPS/W.

It integrates dual MIPI CSI-2 camera interfaces and has an optional ISP (Image Signal Processor) built-in, capable of handling signals from dual cameras.

Equipped with a quad-core Arm Cortex-A55 (1.8GHz) and a single-core Cortex-M33 (200MHz), it takes into account both high performance and low power consumption requirements.

Functional features of R9A09G056N42GBG

Supports H.264/H.265 video codec, and integrates high-speed interfaces such as PCIe Gen3, Gigabit Ethernet, and USB 3.2.

It provides LPDDR4/LPDDR4X memory interfaces and is equipped with 1.5MB on-chip SRAM.

The package size is 15×15mm BGA (840 pins), supporting fanless operation.

Typical applications

Intelligent monitoring system (parking lot monitoring, congestion analysis) ‌

Mobile robots (sweeping robots, lawn mowers) ‌

Driver Monitoring System (DMS
