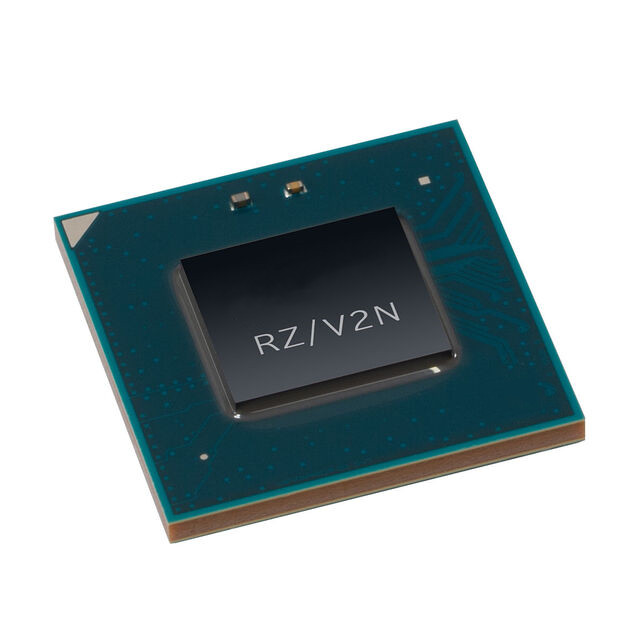

The R9A09G056N47GBG is an AI vision microprocessor (MPU) of the RZ/V2N series launched by Renesas. This processor is designed to provide high-performance solutions for the design of visual recognition systems by integrating components such as AI accelerators, ISPs (Image Signal Processors), and 3D graphics engines.

Core features

Cortex-A55 (1.8GHz) x 4 cores

Cortex-M33 (200MHz) x 1 core

AI Accelerator DRP-AI

Arm Mali™-C55 ISP (Optional)

1.5MB on-chip SRAM

LPDDR4/LPDDR4X memory interface

Gigabit Ethernet interface × 2

USB 2.0 interface x 1 (Host/Function)

USB 3.2 (Gen2) interface x 1 (Host only)

PCIe interface (Gen3/2 line) x 1

MIPI CSI-2 Camera interface x 2

CAN Interface (CAN FD) x 6

AD converter × 24

BGA package (15x15mm 840 pins, 0.5mm pitch)

In addition, the R9A09G056N47GBG is equipped with an ISP (Image Signal Processor) and a dual-channel MIPI® CSI-2® camera interface, which can support dual-camera signal processing, which is crucial for the realization of a vision system. It is also equipped with high-speed interfaces such as PCIe® and USB 3.2, allowing for the expansion of external devices.

Typical applications

The R9A09G056N47GBG is an ideal microprocessor, suitable for applications that require low power consumption and advanced artificial intelligence inference, such as DMS (Driver Monitoring System), surveillance cameras, mobile robots, etc.
