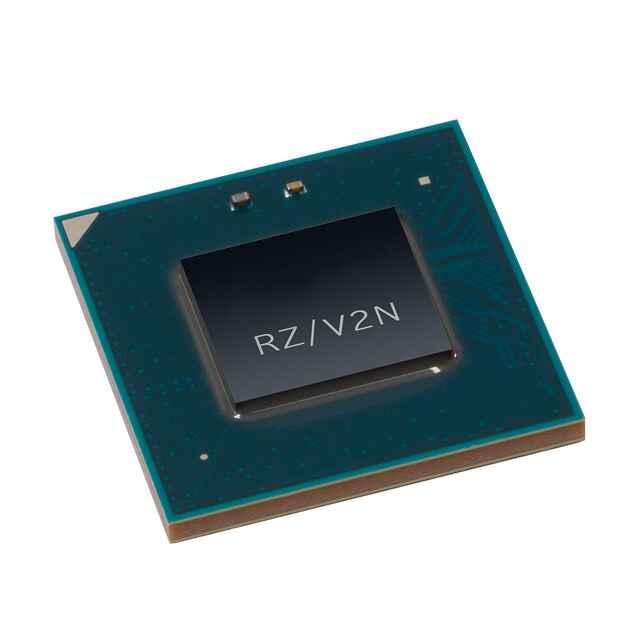

The R9A09G056N41GBG is a visual AI microprocessor (MPU) equipped with Renesas Electronics' proprietary AI accelerator (DRP-AI3), supporting up to 15TOPS of AI performance. Its CPU is a quad-core Arm® Cortex®-A55 (1.8GHz) and Arm Cortex-M33 (200MHz).

This RZ/V2N processor is equipped with an ISP (Image Signal Processor) and a dual-channel MIPI® CSI-2® camera interface, which can support dual-camera signal processing, which is crucial for the realization of a vision system. It is also equipped with high-speed interfaces such as PCIe® and USB 3.2, allowing for the expansion of external devices.

Main features

Cortex-A55 (1.8GHz) x 4 cores

Cortex-M33 (200MHz) x 1 core

AI Accelerator DRP-AI

Arm Mali™-C55 ISP (Optional)

1.5MB on-chip SRAM

LPDDR4/LPDDR4X memory interface

Gigabit Ethernet interface × 2

USB 2.0 interface x 1 (Host/Function)

USB 3.2 (Gen2) interface x 1 (Host only)

PCIe interface (Gen3/2 line) x 1

MIPI CSI-2 Camera interface x 2

CAN Interface (CAN FD) x 6

AD converter × 24

BGA package (15x15mm 840 pins, 0.5mm pitch)

Application scenarios

The R9A09G056N41GBG is an ideal microprocessor, suitable for applications that require low power consumption and advanced artificial intelligence inference, such as DMS (Driver Monitoring System), surveillance cameras, mobile robots, etc.
