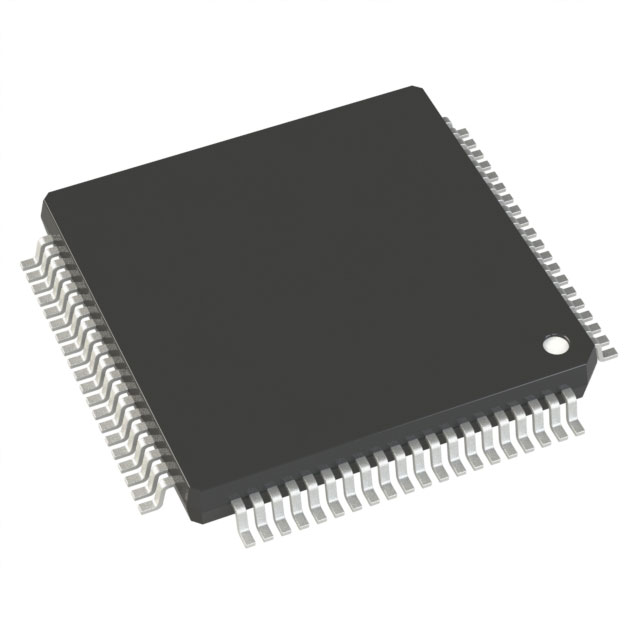

The R5F52616BGFN device is a microcontroller with an outstanding energy efficiency ratio, advanced touch functionality and powerful safety features. It belongs to the RX261 series and is suitable for a wide range of applications including consumer electronics, industrial automation, building automation and battery-powered products. The following are the key parameters of the R5F52616BGFN microcontroller:

Series: RX261

Installation style: SMD/SMT

Packaging/Cabinet: LFQFP-80

Core: RXv3

Program memory size: 256 kB

Data RAM size: 128 kB

Data bus width: 32 bits

ADC resolution: 12 bits

Maximum clock frequency: 64 MHz

Number of input/output terminals: 67 I/O

Power supply voltage - minimum: 1.6V

Power supply voltage - maximum: 5.5V

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 105 ° C

Packaging: Tray

Analog power supply voltage: 1.6V to 5.5V

Interface types: CAN FD, I2C, RSCI, RSPI, SCI, USB 2.0

Number of ADC channels: 18 channels

Product type: 32-bit Microcontrollers - MCU

Program memory type: ROM

In addition, the R5F52616BGFN integrates the CTSU2SL third-generation capacitive touch sensor, supporting multi-frequency scanning, active shielding, automatic detection and MEC technology, enhancing noise resistance and water resistance. It is suitable for damp environments such as kitchens and bathrooms.

Application field

Household appliances (cookware, water heaters, refrigerators, washing machines)

Building automation (elevators, HVAC, thermostats)

Industrial automation (PLC, robot

Healthcare (blood glucose monitors, wearable devices)
