R7F7016524ABG-C is a 32-bit microcontroller chip designed for automotive body control systems. It adopts the G3KH CPU core with a main frequency of up to 240MHz, featuring high computing processing capabilities and low power consumption. The following are its key parameters:

Core processor: RH850G3KH

Kernel specification: 32-bit

Speed: 240MHz

Connection capabilities: CANbus, CSI, I2C, LINbus, UART/USART

Peripheral devices: DMA, LVD, PWM, WDT

I/O number: 214

Program storage capacity: 3MB (3M x 8)

Program memory type: Flash memory

EEPROM capacity: 128K x 8

RAM size: 384K x 8

Voltage - Power supply (Vcc/Vdd) : 3V to 5.5V

Data converter: A/D 20x10b, 16x12b

Oscillator type: Internal

Operating temperature: -40°C to 125°C (TA)

Installation type: Surface mount type

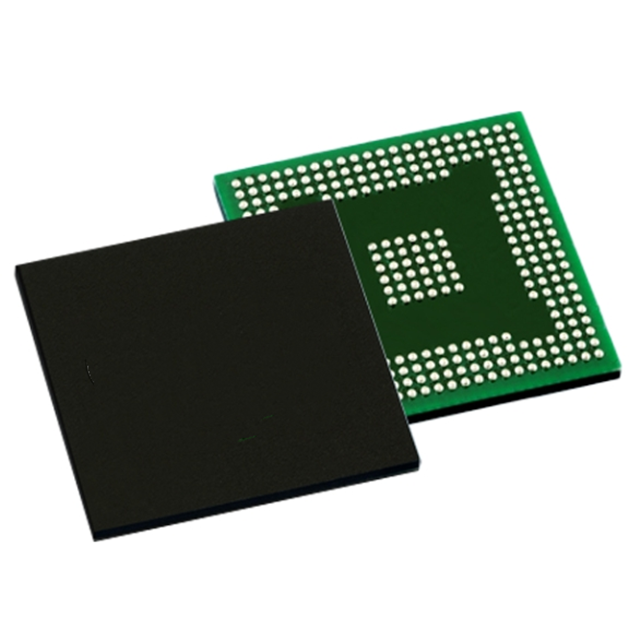

Package: 272-FBGA (17x17)

The R7F7016524ABG-C supports multiple energy-saving modes, including LPS low-power sampling and DeepSTOP mode (which can turn off the power circuit), making it suitable for power-sensitive scenarios such as vehicle control. It integrates CAN FD (high-speed/high-speed CAN) and Ethernet interfaces, supporting vehicle body network communication and data transmission.

Target application

Vehicle body

Body Control Module (BCM

Automobile gateway

Automobile HVAC

Automobile lighting module
