The RG5R256A1C0GBY (2nd generation RCD) is a hosted clock driver for DDR5 RDIMM, LRDIMM, and NVDIMM, supporting up to 5600 MT/s rates in server applications. Its main function is to buffer the command address (CA) bus, chip selection and clock signals between the main controller and DRAM. In addition, the RG5R256A1C0GBY also supports the BCOM bus to control the data buffering of LRDIMM.

Key features

The PCB layout of DDR5 RDIMM and LRDIMM has been optimized

Supports DDR5 with a maximum speed of 5600 MT/s

Supports power-saving mode to reduce server power consumption

Supports 1-Rank/2-Rank DIMM configuration

Supports DRAM types such as SDP, DDP, and 3DS

Supports up to 16Gb DRAM die

Provide access to internal control words to configure functions to adapt to different RDIMM and LRDIMM module applications

Support I2C and I3C sideband for register access control

Support BCOM for LRDIMM data buffer control

Supports both return and delivery modes

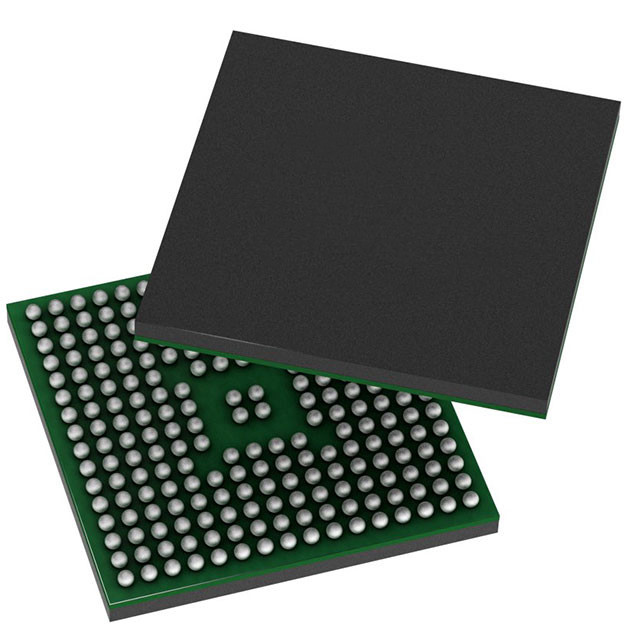

Package: 8.7 × 13.5mm, 240-FCBGA

Typical applications

RDIMM, LRDIMM and modules for enterprise servers

The memory is integrated into the server motherboard
