RG5R364B0C0GBY (3rd generation RCD) is a stored clock driver for DDR5 RDIMM, supporting a rate of up to 6400 MT/s in server applications. Its main function is to buffer the command address (CA) bus, chip selection and clock signals between the main controller and DRAM.

The RG5R364B0C0GBY supports a dual-channel architecture, where these two channels share some common logic but operate independently in other aspects (such as clock signals). Each channel has a 7-bit dual-channel data rate CA bus input, a single-channel parity input, and a two-bit chip selection signal input, and will generate two sets of 14-bit single-channel data rate CA bus outputs and two sets of chip selection outputs. The RCD has a universal clock input and PLL, but it also generates a separate clock output to the DRAM channel.

Main features

The PCB layout of DDR5 RDIMM and LRDIMM has been optimized

Supports DDR5 with a maximum speed of 6400 MT/s

Supports power-saving mode to reduce server power consumption

Supports 1-Rank/2-Rank DIMM configuration

Supports DRAM types such as SDP, DDP, and 3DS

Supports up to 16Gb DRAM die

Provide access to internal control words to configure functions to adapt to different RDIMM and LRDIMM module applications

Support I3C sideband for asynchronous register access control

Support BCOM for LRDIMM data buffer control

Supports both return and delivery modes

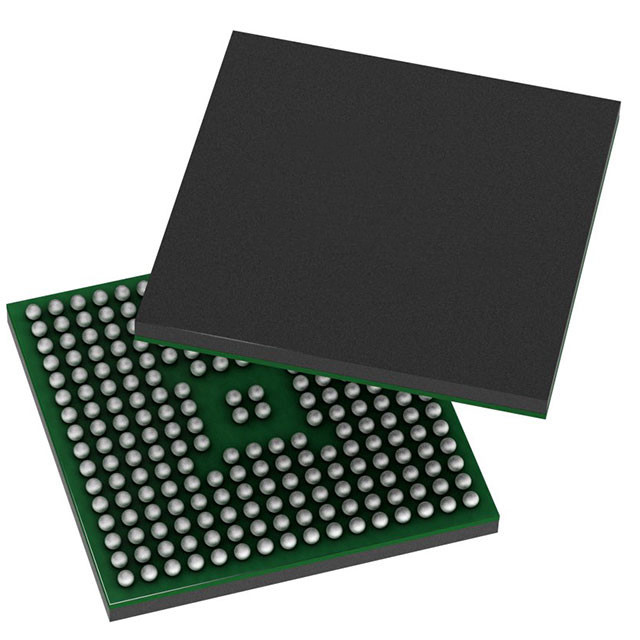

Package: 8.7 × 13.5mm, 240-FCBGA

Application scenarios

RDIMM, LRDIMM and modules for enterprise servers

The memory is integrated into the server motherboard
