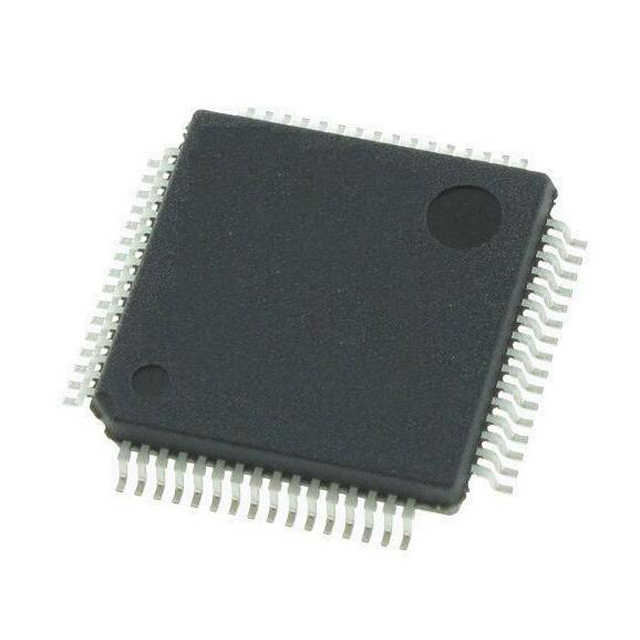

CY8C4148AZI-S445: 48MHz, 32-bit PSoC™ 4100S Plus microcontroller IC, TQFP-64

CY8C4148AZI-S445 Specifications:

Series:    PSOC 4100S Plus

Mounting Style:    SMD/SMT

Package/Case:    TQFP-64

Core:    ARM Cortex M0+

Program Memory Size:    256 kB

Data Bus Width:    32-bit

ADC Resolution:    10-bit, 12-bit

Maximum Clock Frequency:    48 MHz

Number of I/O Pins:    54 I/O

Data RAM Size:    32 kB

Supply Voltage - Minimum:    1.71 V

Supply Voltage - Maximum:    5.5 V

Minimum Operating Temperature:    -40 °C

Maximum Operating Temperature:    +105 °C

Interface Type:    I2C, SPI, UART

Timer/Counter Count:    8 x 16-bit

CY8C4148AZI-S445 Product Features:

32-bit microcontroller subsystem

- 48 MHz Arm® Cortex®-M0+ processor with single-cycle multiplication support

- Up to 256 KB flash memory with read accelerator

- Up to 32 KB SRAM

- 8-channel DMA engine

Low-power 1.71 V to 5.5 V operating voltage

- Deep sleep mode with analog circuits operational and digital system current of 2.5 µA

Clock sources

- External crystal oscillator (ECO) from 4 to 33 MHz

- PLL generating a 48 MHz frequency

- 32 kHz crystal oscillator (WCO)

- ±2% internal master oscillator (IMO)

- 40 kHz internal low-power oscillator (ILO)

Up to 57 programmable general-purpose input/output (GPIO) pins

- Any GPIO pin can be configured as CAPSENSE™, analogue, or digital mode

- Drive mode, strength, and rise/fall time are all programmable
