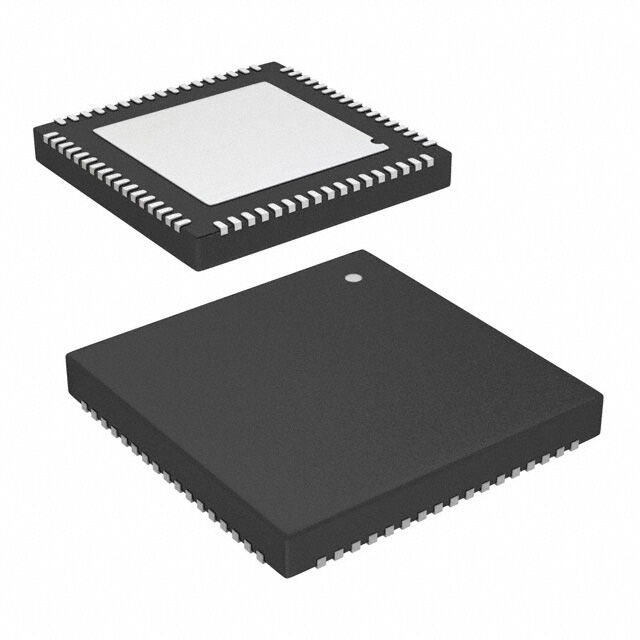

CY8C4125LTI-M445: PSoC 4100M Series MCU — 24MHz, 32-bit ARM® Cortex®-M0 null microcontroller IC, VQFN-68

CY8C4125LTI-M445 Product Details:

Series: PSoC™ 4 CY8C41xx - M

Core Processor: ARM® Cortex®-M0

Core Specifications: 32-bit

Speed: 24MHz

I/O Count: 55

Program Storage Capacity: 32KB (32K x 8)

RAM Size: 4K x 8

Voltage - Power Supply (Vcc/Vdd): 1.71V to 5.5V

Data Converter: A/D 16x12-bit SAR; 2xIDAC

Operating Temperature: -40°C to 85°C (TA)

Related Information:

PSoC® 4 is a scalable and reconfigurable platform architecture for a series of programmable embedded system controllers based on the ARM® Cortex™-M0 processor. It combines programmable and reconfigurable analog and digital modules with flexible automatic routing functionality. The PSoC 4100M product series, based on this platform architecture, integrates a microcontroller, digital programmable logic, programmable analogue modules, programmable interconnect, high-performance analogue-to-digital converters, operational amplifiers with comparator mode, and standard communication and timing peripherals. PSoC 4100M products will be fully compatible with other members of the PSoC 4 platform to meet new application and design requirements. Programmable analogue and digital subsystems provide design flexibility and field-tuning capabilities.

CY8C4125LTI-M445 product features:

32-bit microcontroller subsystem

24 MHz ARM Cortex-M0 processor with single-cycle multiplication support

Up to 128 kB flash memory with read accelerator

Up to 16 kB on-chip memory (SRAM)

Direct memory access (DMA) engine

Low-power operating mode supporting a voltage range of 1.71 V to 5.5 V

Current consumption as low as 20 nA in shutdown mode, with wake-up capability via GPIO pins

Sleep and deep sleep modes enable a trade-off between wake-up time and power consumption

Up to 55 programmable GPIO pins

GPIO pins configurable for capacitive sensing, LCD, analogue, or digital modes

Drive mode, strength, and rise/fall time programmable

Extended industrial temperature operating range: –40 °C to +105 °C operating temperature
