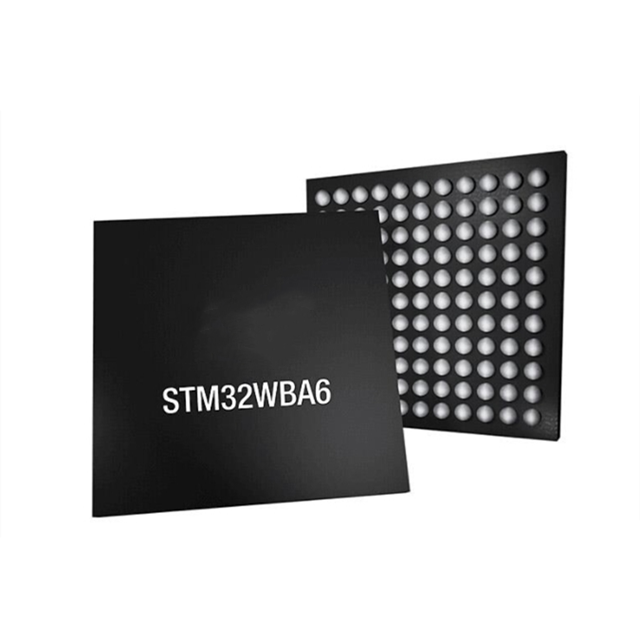

The STM32WBA62PGI6 is an ultra-low-power wireless microcontroller based on an Arm Cortex-M33 TZ processor. Designed specifically for low-power Bluetooth (Bluetooth LE 5.4) and Zigbee/Thread and other wireless communications.

Main features

High data rate ensures fast and reliable data transmission

Multi-protocol flexibility (low-power Bluetooth, IEEE 802.15.4 communication protocol, Zigbee, Thread and Matter)

Long-distance capability and expandable communication range

The output power can reach up to +10dBm, which can increase the communication range

The low-power message transmission function can extend battery life

Application scenarios

The STM32WBA62PGI6 wireless MCU is suitable for scenarios requiring low-power wireless connections such as smart homes, industrial Internet of Things, and wearable devices, and supports concurrent operation of multiple protocols (such as running Bluetooth and Zigbee simultaneously). ‌

Technical specifications

Type: TxRx + MCU

Radio Frequency series/standards: 802.15.4, Bluetooth

Protocol: Bluetooth v5.3

Modulation: GFSK

Frequency: -

Data rate (maximum) : 2Mbps

Power - Output: 10dBm

Sensitivity: -102 DBM

Storage capacity: 1MB flash memory, 256kB SRAM

Serial interfaces: ADC, GPIO, I2C, IrDA, SPI, UART, USART

GPIO: 86

Voltage - Power supply: 1.71V to 3.6V

Current - Reception: 4.26mA to 8.53mA

Current - Transmission: 5.94mA to 22.38mA

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Package/Housing: 121-UFBGA
