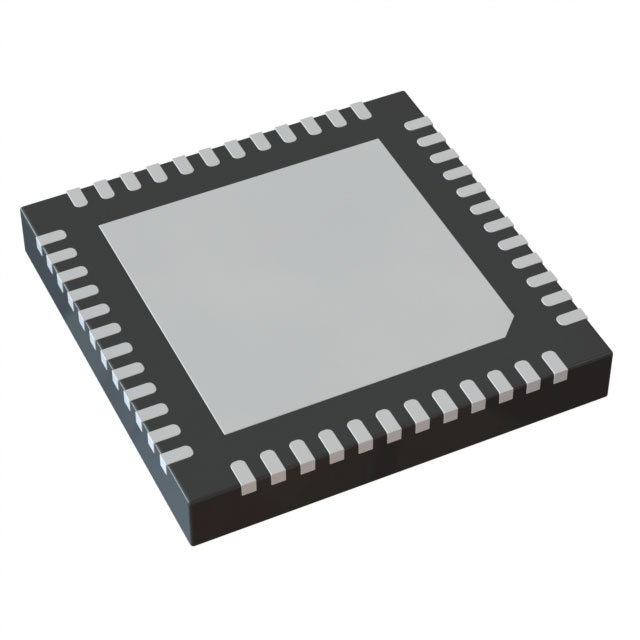

The M0G3506QRGZRQ1 microcontrollers (MCUs) are part of MSP's highly integrated, ultra-low-power, 32-bit MCUs based on the enhanced Arm Cortex-M0+ 32-bit core platform and operating at up to 80 MHz. These low-cost MCUs offer high-performance analogue peripheral integration, support an operating temperature range of -40°C to 125°C and operate from supply voltages of 1.62V to 3.6V. These low-cost MCUs offer high-performance analogue peripheral integration, support an operating temperature range of -40°C to 125°C, and operate from a supply voltage of 1.62V to 3.6V.

M0G3506QRGZRQ1 Product Features:

Core

Arm 32-bit Cortex-M0+ CPU with Memory Protection Unit up to 80MHz

Operating Temperature Range: -40°C to 125°C

Wide Supply Voltage Range: 1.62V to 3.6V

Memory

Flash with ECC up to 128KB

SRAM with hardware parity up to 32KB

Optimised low-power mode

RUN: 101µA/MHz (CoreMark)

SLEEP: 487µA/4MHz

STOP: 47µA/32kHz

STANDBY: 1.5µA with RTC and SRAM retention

SHUTDOWN: 80nA with IO wake-up capability

M0G3506QRGZRQ1 Applications

Automotive Body Electronics and Lighting

Automotive Gateway

Steering Wheel System

Automotive Motor Control

DC to AC Inverter

Interior Lighting

Door Handle Module

Kick-On Module

Vehicle Occupant Detection

Seat Comfort Module
