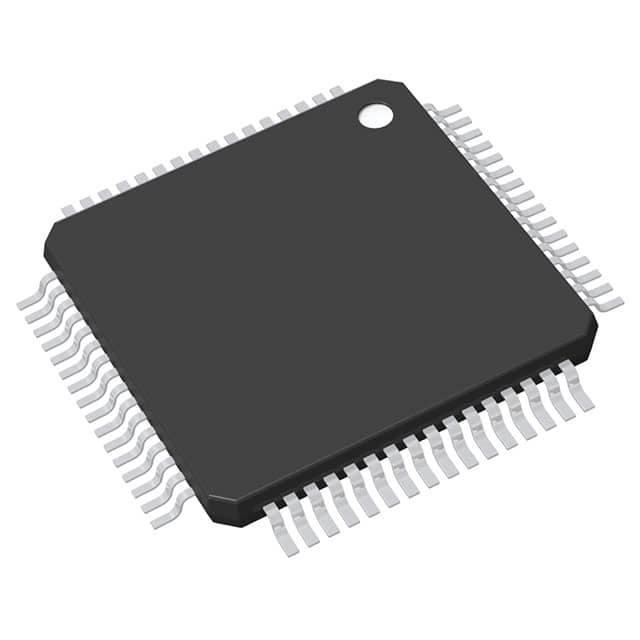

The R5F56719HGFM RX671 microcontroller is a high-performance 32-bit MCU equipped with the RXv3 core and operating at a frequency of 120MHz. In addition, this chip is also equipped with a capacitive touch sensor (CTSU), which can achieve high sensitivity and high noise immunity (it has passed the IEC 61000 4-3/4-6 level3 noise test).

Main specifications

Product: R5F56719HGFM

Core processor: RXv3

Kernel specification: 32-bit

Speed: 120MHz

Connection capabilities: I2C, LINbus, QSPI, SCI, SPI, USB

Peripheral devices: Capacitive touch, DMA, LVD, POR, PWM, WDT

I/O count: 44

Program storage capacity: 1MB (1M x 8)

Program memory type: Flash memory

EEPROM capacity: 8K x 8

RAM size: 384K x 8

Voltage - Power supply (Vcc/Vdd) : 2.7V to 3.6V

Data converter: A/D 10x12b

Oscillator type: Internal

Operating temperature: -40°C to 105°C (TA)

Installation type: Surface mount type

Package: 64-LFQFP (10x10)

Application field

The R5F56719HGFM is suitable for scenarios such as industrial control, consumer electronics, and medical equipment that require high real-time performance, low power consumption, and limited space, such as smartwatches and industrial Internet of Things terminals.
