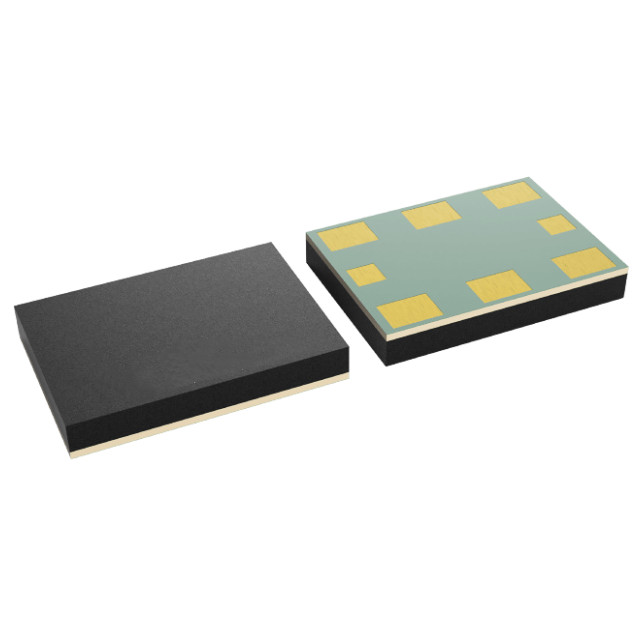

The LMK61E0M-SIAR ultra-low jitter PLLatinumTM programmable oscillator uses a fractional N-frequency synthesizer and an integrated VCO to generate commonly used reference clocks. The LMK61E0M-SIAR supports 3.3V LVCMOS output. This device has the function of self-starting from the on-chip EEPROM to generate the default output frequency set by the factory, or the device register and EEPROM Settings can be fully programmed in the system through the I2C serial interface. The LMK61E0M-SIAR provides fine and rough frequency margin control through the I2C serial interface and thus becomes a numerical control oscillator (DCXO).

Technical Specification

Basic resonator: Silicon

Type: XO (Standard)

Programmable type: Configured at the factory

Available frequency range: 50 MHz to 200 MHz

Function: Enable/Disable

Output: LVCMOS

Voltage - Power supply: 3.135V to 3.465V

Frequency stability: -

Frequency stability (overall) : ±25ppm

Operating temperature: -40°C to 85°C

Spread spectrum bandwidth: -

Current - Power supply (maximum value) : 180mA

Grade: -

Installation type: Surface mount type

Package/Shell: 8-QFM

Application scenarios

The LMK61E0M-SIAR is applicable to various scenarios, including:

High-performance alternatives to crystal oscillators, SAW oscillators or chip oscillators

Switch, router, network card, baseband device (BBU), server, storage /SAN

Testing and measurement

Medical imaging

FPGA, processor connection

xDSL, Broadcast video
