The 8A34042E-000NLG is a multi-channel digital PLL/ digital control oscillator (DPLL/DCO) launched by Renesas, providing tools for managing timing references, clock conversions, and timing paths for common communication protocols such as Synchronous Ethernet (SyncE), Optical Transport Network (OTN), and Common Radio Interface (CPRI). The 8A34042E-000NLG can be used for communication ports on synchronous line cards or sub-cards, which are connected to the synchronous source through the backplane or other media. The numerical control oscillator (dco) can be controlled by the OTN clock recovery servo software running on an external processor. Digital PLL(DPLL) supports filtering the intermittent clocks of OTN and uninterrupted reference switching between references of redundant clock sources.

The 8A34042E-000NLG also supports multiple independent timing channels to generate clocks. Jitter attenuation and universal frequency conversion. Input-to-input, input-to-output and output-to-output phase skew can all be precisely managed. This device outputs an ultra-low jitter clock and can directly synchronize SerDes with operating rates up to 28Gbps, as well as CPRI/OBSAI, SONET/SDH and PDH interfaces.

The key parameters of 8A34042E-000NLG include:

Type: Frequency converter

PLL: Yes

Input: Clock

Output: CML, HCSL, HSTL, LVCMOS, LVDS, LVPECL, SSTL

Number of circuits: 4

Ratio - Input: Output: 7:8

Differential - Input: Output: Yes/Yes

Frequency - Maximum: 1GHz

Frequency divider/frequency doubler: Yes/No

Voltage - Power supply: 1.71V to 3.465V

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

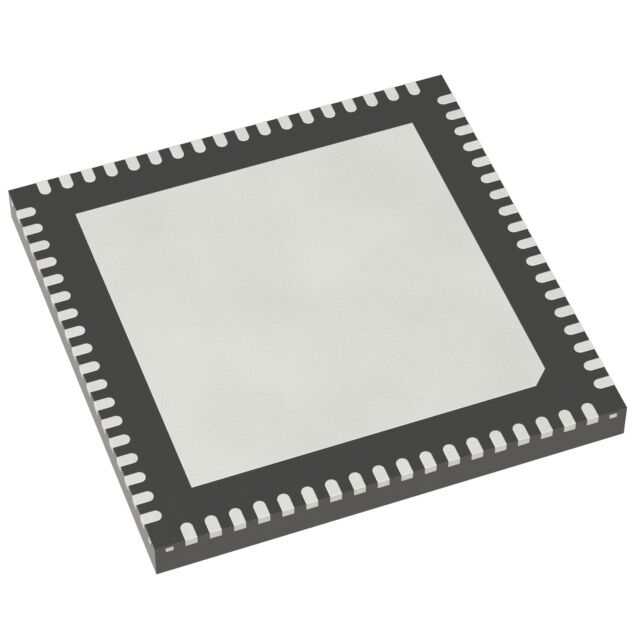

Package/Housing: 72-VFQFN
