The 8T49N283C-999NLGI features two independent fractional feedback PLLS and can be used as both a jitter attenuator and a frequency converter. It is equipped with a 6-integer and 2-decimal output divider, allowing for the generation of up to 8 different output frequencies, ranging from 8 KHZ to 1GHz. Among them, four frequencies are independent of each other and completely independent of inputs. The other four are related frequencies. The 8-channel output can be selected among LVPECL, LVDS or LVCMOS output levels.

The 8T49N283C-999NLGI mainly has the following technical parameters:

PLL: With bypass

Input: Crystal

Output: LVCMOS, LVPECL

Number of circuits: 1

Ratio - Input: Output: 1:8

Differential - Input: Output: None/Yes

Frequency - Maximum: 1GHz

Frequency divider/frequency doubler: Yes/No

Voltage - Power supply: 2.375V to 3.465V

Operating temperature: -40°C to 85°C

Installation type: Surface mount type

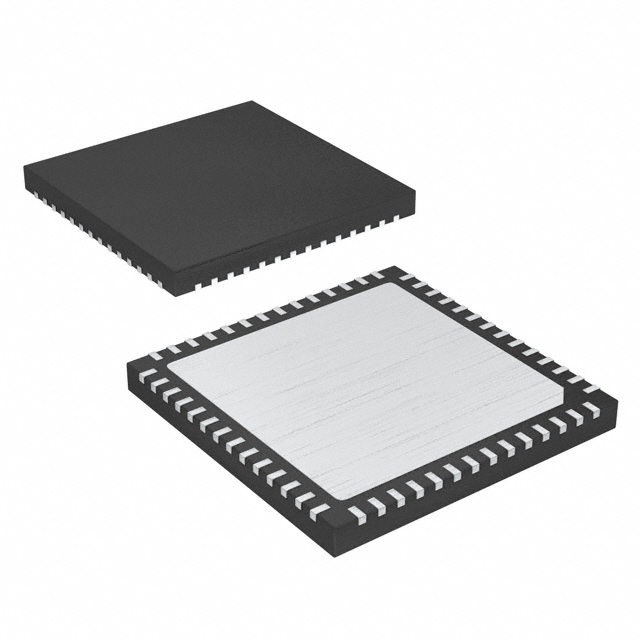

Packaging/Housing: 56-VFQFN

The typical applications of 8T49N283C-999NLGI mainly include:

OTN or SONET/SDH equipment line card (up to OC-192, and supports FEC ratio)

OTN decommapping (Gap clock and DCO mode)

Gigabit and terbit IP switches/routers, including support for synchronous Ethernet

Wireless base station baseband

Data communication
