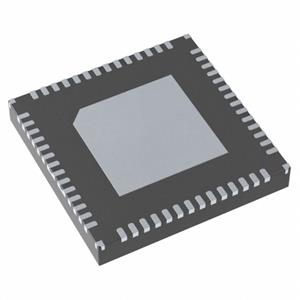

Commodity Model:844S2416CKILF

Trade Name:PLLs, Frequency Synthesizers

Brand:Renesas

Particular Year:25+

Package:VFQFN-56

Delivery Date:New and original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Renesas
Model
844S2416CKILF
Package
VFQFN-56
Describe
FemtoClock Crystal-to-Differential HCSL/LVCMOS Frequency Synthesizer

Product Description

The 844S2416CKILF is a 17-channel output, dual-channel PLL frequency synthesizer that has been optimized for generating various clocks for Ethernet, USB and other interfaces. Using a 25MHz 18pF parallel resonant crystal, this device will generate 24MHz, 25MHz, 100MHz and 200MHz clocks with mixed HCSL and LVCMOS/LVTTL levels. The 844S2416CKILF adopts a 56-pin VFQFN package and is most suitable for applications with limited space.


Main features

Two single-ended outputs of LVCMOS/LVTTL, 24MHz

12-channel LVCMOS/LVTTL single-ended output, 25MHz

Two differential HCSL output pairs at 100MHz

A 100MHz or 200MHz differential HCSL output pair

Crystal oscillator interface :25MHz

PLL 1 - VCO:2.4 GHz

pl L2-VCO range :1.8GHz to 2.2GHz

10% frequency margin, with a step of 1.25%

Optional spread spectrum - downward spread -0.5%

I C control interface, with address configuration pin, is loaded by default when releasing a low-level effective reset

3.3V power supply voltage

Ambient operating temperature: -40°C to 85°C

Lead-free (RoHS 6) packaging is available


Application field

The 844S2416CKILF is configured via the I²C interface, supporting frequency step adjustment and Spread Spectrum functions, and is suitable for fields such as communication and industrial control.
