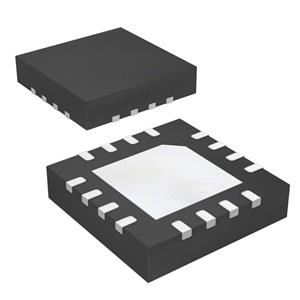

For picture reference, please see the specifications
< >

Commodity Model:8P34S1102NLGI

Trade Name:Clock Buffer

Brand:Renesas

Particular Year:25+

Package:VFQFN-16

Delivery Date:New and original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Renesas
Model
8P34S1102NLGI
Package
VFQFN-16
Describe
Single-channel, 1:2 LVDS 1.8V/2.5V fan-out buffer

Product Description

The 8P34S1102NLGI is a high-performance differential LVDS fan-out buffer. This device is designed for fan-out 1PPS signals or high-frequency, extremely low additive phase noise clock and data signals. The 8P34S1102NLGI supports fail-safe operation and is powered by 1.8V or 2.5V. The guarantee of output-to-output and device-to-device skew characteristics makes this buffer highly suitable for clock distribution applications that require clear performance and repeatability. It provides one differential input and two low-skew outputs. The 8P34S1102NLGI has been optimized for low power consumption and low additive phase noise.


Performance parameters

Type: Fan-out buffer (allocated)

Number of circuits: 1

Ratio - Input: Output: 1:2

Differential - Input: Output: Yes/Yes

Input: CML, LVDS

Output: LVDS

Frequency - Maximum: 1.2 GHz

Voltage - Power supply: 1.71V to 1.89V

Operating temperature: -40°C to 85°C

Installation type: Surface mount type

Package/Housing: 16-VFQFN


The 8P34S1102NLGI clock buffer is mainly used for signal distribution and clock distribution, and supports low-noise and low-power design.
