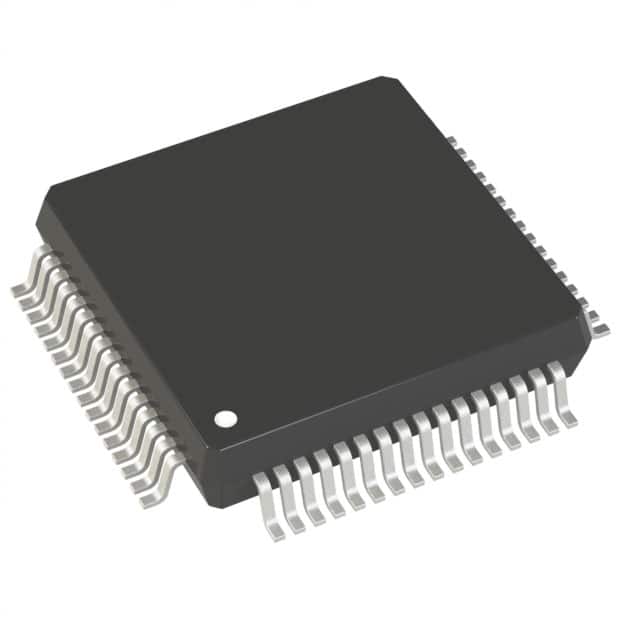

R5F51114ADFK is a 32-bit RX microcontroller (MCU) produced by (Renesas), with a main frequency of 32MHz, featuring a 64-LQFP package, a program storage capacity of 96KB (96K x 8), and an operating voltage range of 1.8V to 3.6V. The R5F51114ADFK belongs to the RX111 series MCU, featuring a USB 2.0 interface that complies with the battery charging specification (BC 1.2), low current consumption, and the ability to quickly wake up from standby mode.

Core parameters

Core processor: RX

Kernel specification: 32-bit

Speed: 32MHz

Connection capabilities: I2C, SCI, SPI, USB OTG

Peripheral devices: DMA, LVD, POR, PWM, WDT

I/O count: 46

Program storage capacity: 96KB (96K x 8)

Program memory type: Flash memory

EEPROM capacity: 8K x 8

RAM size: 16K x 8

Voltage - Power supply (Vcc/Vdd) : 1.8V to 3.6V

Data converter: A/D 14x12b; D/A 2x8b

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Package: 64-LQFP (14x14)

Application scenarios

The R5F51114ADFK microcontroller is applicable to fields such as smart home, industrial equipment, and small household appliances, such as the control of smart refrigerators and washing machines.
