Trade Name:Silicon Carbide MOSFET Single Transistor
Brand:ON
Particular Year:25+

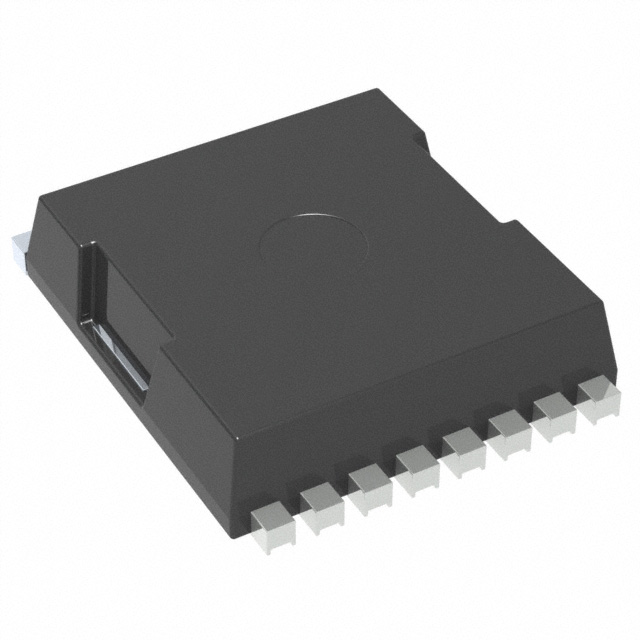

Package:H-PSOF-8
Delivery Date:New and original
Stock: 2000pcs
The NTBL023N065M3S device is a silicon carbide (SiC) MOSFET designed for fast switching applications to provide reliable performance . The NTBL023N065M3S has a typical RDS (on) of 23 Mω at VGS = 18V, an ultra-low gate charge (QG (tot) = 69nC), and a high-speed switch with low capacitance (Coss = 152pF). The NTBL023N065M3S SiC MOSFETs are ideal for applications such as switched mode power supplies (SMPS), solar inverters, uninterruptible power supplies (UPS), energy storage systems and infrastructure, providing powerful performance for modern power management needs.
Technical parameter
Package/housing: H-PSOF-8
Transistor polarity: N-Channel
Number of channels: 1 Channel
Vds- drain-source breakdown voltage: 650 V
Id- Continuous drain current: 77 A
Rds On- drain-source on-resistance: 32.6 mOhms
Vgs - grid - source voltage: -8 V, + 22 V
Vgs TH-gate source threshold voltage: 4 V
Qg- Grid charge: 69 nC
Minimum operating temperature: -55 C
Max. operating temperature: + 175 C
Pd- Power dissipation: 312 W
Channel mode: Enhancement
Configuration: Single
Drop time: 9.6ns
Package: Reel
Encapsulation: Cut Tape
Product: SiC MOSFETS
Product type: SiC MOSFETS
Rise time: 15 ns
Series: NTBL023N065M3S
Transistor type: 1 N-Channel
Typical shutdown delay: 35 ns
Typical turn-on delay: 11 ns
Model
Brand
Package
Quantity
Describe
INFINEON
PG-HDSOP-22
2000
CoolSiC™ Automotive MOSFET 750 V G2 in Q-DPAK top-side cooled package, 16 mΩ
INFINEON
PG-HDSOP-22
2000
CoolSiC™ Automotive MOSFET 750 V G2 in Q-DPAK top-side cooled package, 25 mΩ
INFINEON
PG-HDSOP-22
2000
CoolSiC™ Automotive MOSFET 750 V G2 in Q-DPAK top-side cooled package, 60 mΩ
INFINEON
TO-247-4
3000

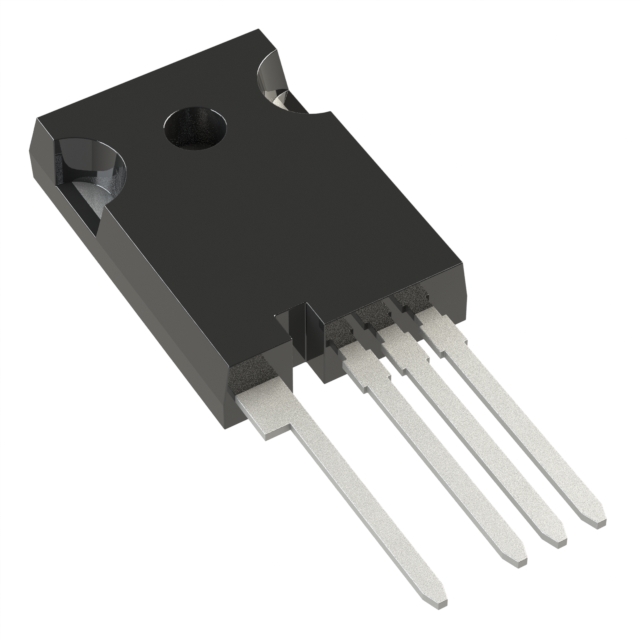

1200V, 60mΩ, CoolSiC™ Silicon Carbide MOSFET Transistor, TO-247-4
