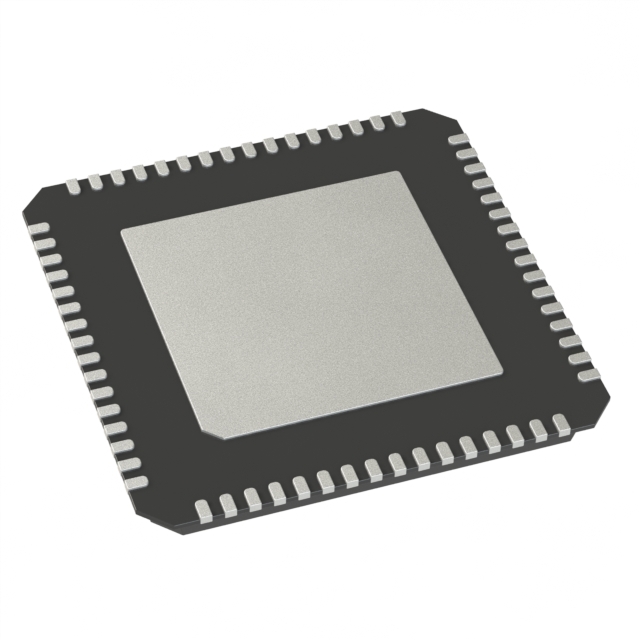

The AD9268BCPZ-80 is a dual-channel, 16-bit, 80 MSPS analog-to-digital converter (ADC) designed to support communication applications that require high performance, low cost, small size and versatility.

Product advantages

The on-chip jitter option improves SFDR performance through low-power analog input.

The proprietary differential input maintains excellent signal-to-noise ratio (SNR) performance at a maximum input frequency of 300 MHz.

It is powered by a single 1.8V supply, while the digital output driver is powered by an independent supply to support 1.8V CMOS or LVDS output.

The Standard Serial Port Interface (SPI) supports various product features and functions, such as: data formatting (offset binary, binary complement or Gray code), clock DCS enabling, power-saving mode, test mode, and reference voltage mode, etc.

This dual-channel ADC core adopts a multi-level, differential pipeline architecture and integrates output error correction logic. Each ADC features a wide bandwidth, differential sampling-holding analog input amplifier, supporting a variety of input ranges selectable by the user. Integrated reference voltage sources can simplify the design. Duty cycle stabilizers can be used to compensate for the fluctuations in the duty cycle of the ADC clock, enabling the converter to maintain excellent performance.

The ADC output data can be directly routed to two external 16-bit output ports, which can be set to 1.8V CMOS or LVDS.

The AD9268BCPZ-80 is packaged in a 64-pin LFCSP package and has a rated temperature range of -40 °C to +85°C in the industrial temperature range.

Application field

Communication

Diversity radio system

Multimode digital Receiver (3G

GSM, EDGE, W-CDMA, LTE, CDMA2000, WiMAX, TD-SCDMA

I/Q demodulation system

Intelligent antenna system

General Software-defined Radio

Broadband Data application

Ultrasonic equipment
