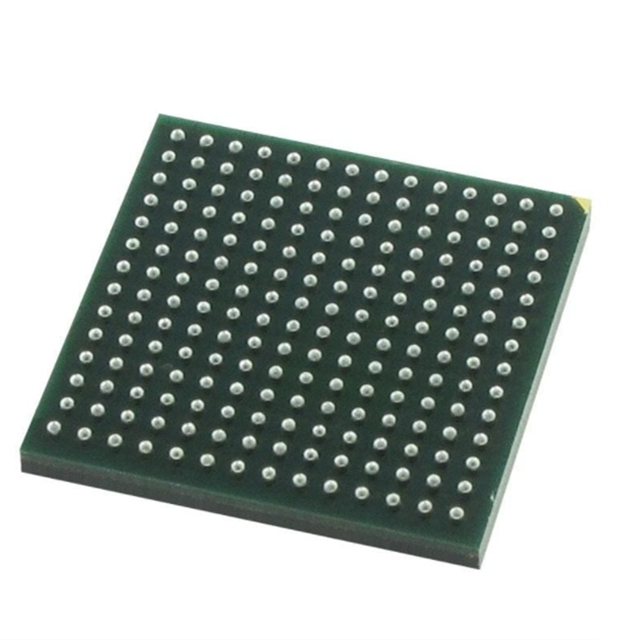

The AD9625BBB-2.6 is a 12-bit single-chip sampling analog-to-digital converter (ADC) launched by Analog Devices (ADI), which can operate at a conversion rate of up to 2.6 gigabits per second (GSPS). This product is used for sampling wideband analog signals up to the second Nyquist region. The AD9625BBB-2.6 combines a wide input bandwidth, high sampling rate and excellent linearity, making it highly suitable for spectrum analyzers, data acquisition systems and various military electronic applications, such as radar and interference/anti-jamming measurements.

Main features

12-bit, 2.6GSPS non-lost code ADC

SFDR = 79 dBc, and the maximum AIN is 1 GHz (−1 dBFS, 2.5 GSPS).

SFDR = 77 dBc and the maximum AIN is 1.8 GHz (−1 dBFS, 2.5 GSPS).

SNR = 57.6 dBFS, and the maximum AIN is 1 GHz (-1 dBFS, 2.5 GSPS).

SNR = 57 dBFS, and the maximum AIN is 1.8 GHz (-1 dBFS, 2.5 GSPS).

Noise spectral density = -149.5 dBFS/Hz (2.5 GSPS)

Differential analog input: 1.2V p-p

Differential clock input

3.2GHz full-power analog input bandwidth

High-speed 6 or 8-channel JESD204B serial output

Subclass 1:6.50 Gbps (2.6 GSPS)

Two independent 1/8 or 1/16 extraction filters using 10-bit NCO

Power supply voltage: 1.3V, 2.5V

Flexible digital output mode

Built-in optional digital test codes

Timestamp feature

The conversion bit error rate is less than 10−15

Application scenarios

Ad9625bbb-2.6 is widely used in the following scenarios, including:

Spectrum analyzer

Military communication

Radar

High-performance data storage oscilloscope

Active interference/anti-interference

Electronic monitoring and confrontation
