The AD9625BBPZ-2.0 is a 12-bit single-chip sampling analog-to-digital converter (ADC) that can operate at a conversion rate of up to 2.0 GSPS per second. This product is used for sampling wideband analog signals up to the second Nyquist region. The AD9625BBPZ-2.0 combines a wide input bandwidth, high sampling rate and excellent linearity, making it highly suitable for spectrum analyzers, data acquisition systems and various military electronic applications, such as radar and interference/anti-jamming measurements.

Product advantages

High performance: Outstanding SFDR applications at high sampling rates, direct RF sampling, and on-chip reference voltage sources.

Flexible digital data output format, based on the JESD204B specification.

The control path SPI interface port supports various product features and functions, such as data formats, gain and offset calibration values.

Basic parameters

Resolution: 12 bits

Number of channels: 1 Channel

Interface type: Serial

Sampling ratio: 2 GS/s

Input type: Differential

Structure: Pipeline

Analog power supply voltage: 1.3V, 2.5V

Digital power supply voltage: 1.3V, 2.5V

SNR - Signal-to-noise Ratio: 59.5 dB

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 85 ° C

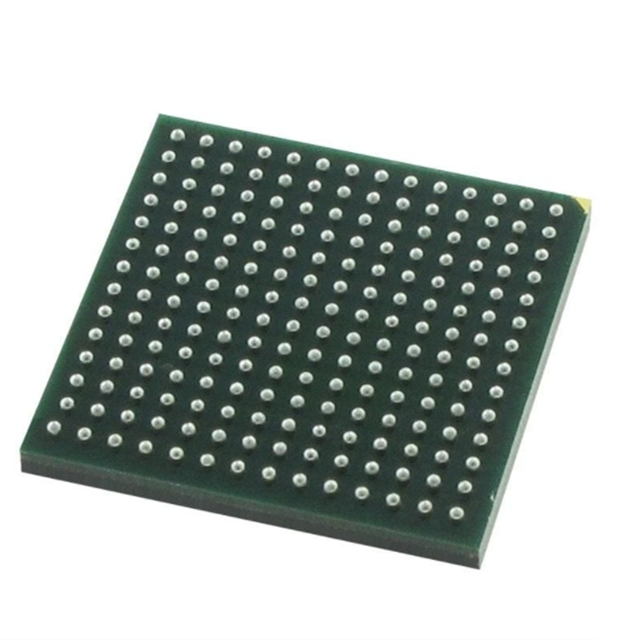

Packaging/Cabinet: BGA-196

Typical applications of AD9625BBPZ-2.0

Spectrum analyzer

Military communication

Radar

High-performance data storage oscilloscope

Active interference/anti-interference

Electronic monitoring and confrontation
