The LTC2262CUJ-12 is A 12-bit sampling A/D converter, specifically designed for digital processing of high-frequency and wide dynamic range signals. With AC performance including 70.5dB SNR and 88dB parasitic dynamic range (SFDR), the LTC2262CUJ-12 has become an ideal choice for demanding communication applications. The ultra-low jitter of 0.17psRMS achieves under-sampling of the IF frequency and outstanding noise performance.

Core features

70.5dB SNR

88dB SFDR

Low power: 146mW

Only 1.8V power supply

CMOS, DDR CMOS or DDR LVDS output

Optional input range: 1VP-P to 2VP-P

800MHz full power bandwidth S/H (sampling and holding)

A random function generator for arbitrary data output

Optional clock duty cycle stabilizer

Shutdown and nap mode

The serial SPI port for configuration

Pin-compatible 14-bit and 12-bit device versions

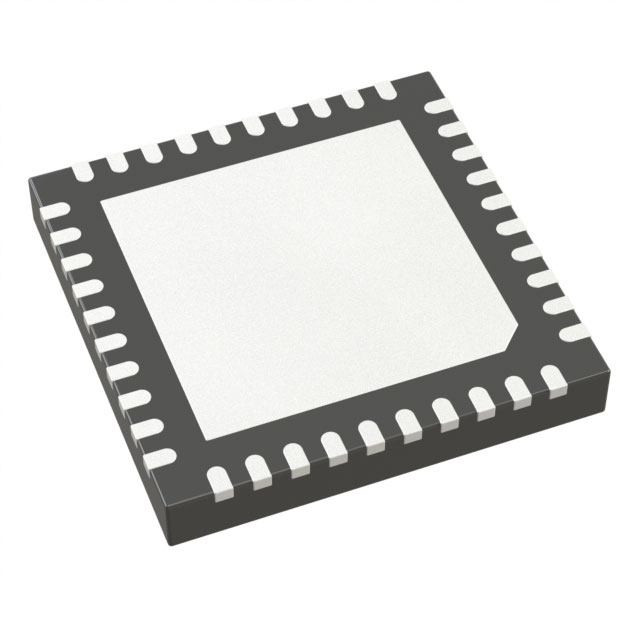

40-pin (6mm x 6mm) QFN package

Application scenarios

Communication

Cellular base station

Software-defined radio

Portable medical imaging

Multi-channel data acquisition

Non-destructive testing
