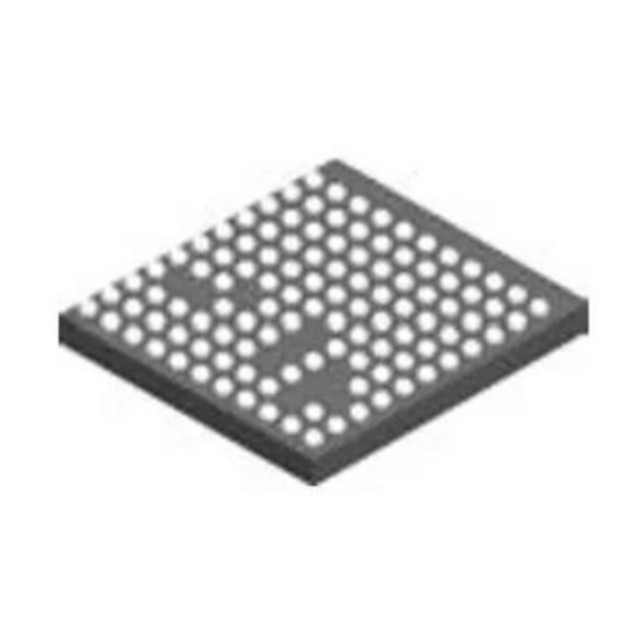

Commodity Model:IWRL6432BDQAYFFR

Trade Name:Industrial mmWave Radar Sensors

Brand:TI

Particular Year:25+

Package:DSBGA-111

Delivery Date:New and Original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
IWRL6432BDQAYFFR
Package
DSBGA-111
Describe
Low-power 60GHz industrial mmWave radar sensor in wafer scale package

Product Description

IWRL6432BDQAYFFR mmWave Sensor device is an integrated single chip mmWave sensor based on FMCW radar technology. The device is capable of operation in the 57GHz to 63.9GHz band and is partitioned into mainly four power domains:


RF/Analog Sub-System: This block includes all the RF and Analog components required to transmit and receive the RF signals.

Front-End Controller sub-System (FECSS): FECSS contains processor responsible for radar front-end configuration, control, and calibration.

Application Sub-System (APPSS): APPSS is where the device implements a user programmable ARM Cortex M4 allowing for custom control and automotive interface applications. Top Sub-System (TOPSS) is part of the APPSS power domain and contains the clocking and power management sub-blocks.

Hardware Accelerator (HWA): The HWA block supplements the APPSS by offloading common radar processing such as FFT, Constant False Alarm rate (CFAR), scaling, and compression.


IWRL6432BDQAYFFR is specifically designed to have separate control for each of the above-mentioned power domains to control the states (power ON or OFF) based on use case requirements. The device also features the capability to exercise various low-power states like sleep and deep sleep, where low-power sleep mode is achieved by clock gating and by turning off the internal IP blocks of the device. The device also provides the option of keeping some contents of the device, like Application image or RF profile retained in such scenarios.


Feature Of IWRL6432BDQAYFFR

FMCW Transceiver

Integrated PLL, transmitter, receiver, baseband and ADC

57GHz - 64GHz coverage with 7GHz continuous bandwidth

3 receive channels and 2 transmit channels

Range typically up to 25m

10dBm typical output power per Tx

12dB Typical noise figure

-89dBc/Hz typical phase noise at 1MHz

FMCW operation

5MHz IF bandwidth, real-only Rx channels

Ultra-accurate chirp engine based on fractional-N PLL

Per transmitter binary phase shifter

Processing elements

Arm M4F core with single precision FPU (160MHz)

TI Radar Hardware Accelerator (HWA 1.2) for FFT, log magnitude, and CFAR operations (80MHz)

Supports multiple low-power modes

Idle mode and deep sleep mode

Power management

1.8V and 3.3V IO support

Built-in LDO network for enhanced PSRR

BOM-Optimized and Power-Optimized modes

One or two power rails for 1.8V IO mode, two or three power rails for 3.3V IO mode

Internal memory

1MB of On-Chip RAM

Configurable L3 shared memory for Radar Cube

Data and Code RAM of (512/640/768KB)

WCSP package having 11 x 11 BGA grid, 111 BGA balls; Package size: 4.89mm x 4.5mm

Clock source

40.0MHz crystal for primary clock

Supports externally driven clock (Square/Sine) at 40.0MHz

32kHz internal oscillator for low power operations

Supports temperature operating range

Operating junction temperature range: –40°C to 105°C


Applications Of IWRL6432BDQAYFFR

PC/Notebooks

Portable electronics

Televisions

Tablets

Earphones

Smart watches

Gaming

Home theater & entertainment

Automated door/gate

Motion detector

Occupancy detection / people tracking / people counting

Video doorbell

IP network camera

Thermostat

Air conditioner

Refrigerators and freezers

Vacuum robot

Lawn mover


Associated Products

Model

Brand

Package

Quantity

Describe

IWRL1432BDQGAMFR

TI

FCCSP-102

3000

Single-chip low-power 76GHz to 81GHz industrial millimeter wave radar sensors

IWRL1432BDBAAMFR

TI

FCCSP-102

3000

Single-chip low-power 76GHz to 81GHz industrial millimeter wave radar sensors

IWRL1432BDQGAMF

TI

FCCSP-102

3000

Single-chip low-power 76GHz to 81GHz industrial millimeter wave radar sensors

IWRL1432BDBAAMF

TI

FCCSP-102

3000

Single-chip low-power 76GHz to 81GHz industrial millimeter wave radar sensors

IWR2944AQGALTR

TI

FCCSP-266

3000

Single-chip 76GHz to 81GHz industrial high-performance radar sensors

IWR2944ABGALTR

TI

FCCSP-266

3000

Single-chip 76GHz to 81GHz industrial high-performance radar sensors

IWR1843ARQGALPR

TI

FCCSP-180

2000

Single-chip 76-GHz to 81-GHz Industrial Radar Sensor

IWRL6432BDQGAMFR

TI

FCCSP-102

2000

Low-power 57GHz to 64GHz industrial mmWave radar sensor

IWRL6432BDBAAMFR

TI

FCCSP-102

2000

Low-power 57GHz to 64GHz industrial mmWave radar sensor

IWR6843AQGABLR

TI

FCBGA-161

2000

60GHz to 64GHz single-chip smart millimetre wave sensor with integrated processing
