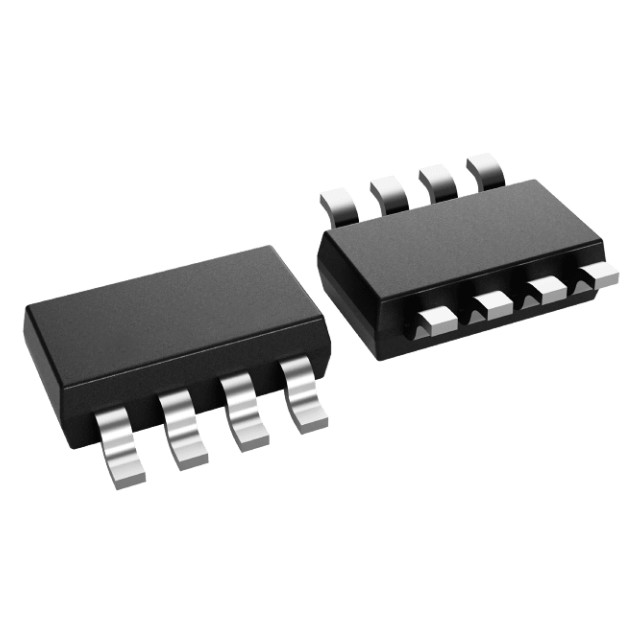

The MSPM0C1103SDDFR microcontroller (MCU) belongs to the highly integrated ultra-low power 32-bit MCU series of MSP. This MCU series is based on the enhanced Arm Cortex-M0+ core platform and can operate at a maximum frequency of up to 24MHz. These low-cost MCUS offer high-performance analog peripheral integration, supporting an operating temperature range of -40°C to 125°C and running at a power supply voltage of 1.62V to 3.6V.

The technical specifications of MSPM0C1103SDDFR include:

Core processor: ARM® Cortex®-M0+

Kernel specification: 32- bits

Speed: 24MHz

Connection capabilities: DALI, I2C, IrDA, LINbus, Smart Card, SMBus, SPI, UART/USART

Peripherals: Under-voltage detection/reset, DMA, POR, PWM, WDT

I/O number: 6

Program storage capacity: 8KB (8K x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 1K x 8

Voltage-supply (Vcc/Vdd) : 1.62V to 3.6V

Data converter: A/D 3x10b SAR

Oscillator types: external, internal

Operating temperature: -40°C to 125°C (TA)

Installation type: Surface mount type

Supplier device packaging: TSOT-23-8

Application scenarios

The MSPM0C1103SDDFR is suitable for embedded systems that require low power consumption and high-performance analog functions, such as industrial control, automotive electronics, smart home and other fields. Its ultra-low power design and rich peripheral support make it excel in these applications ‌.
