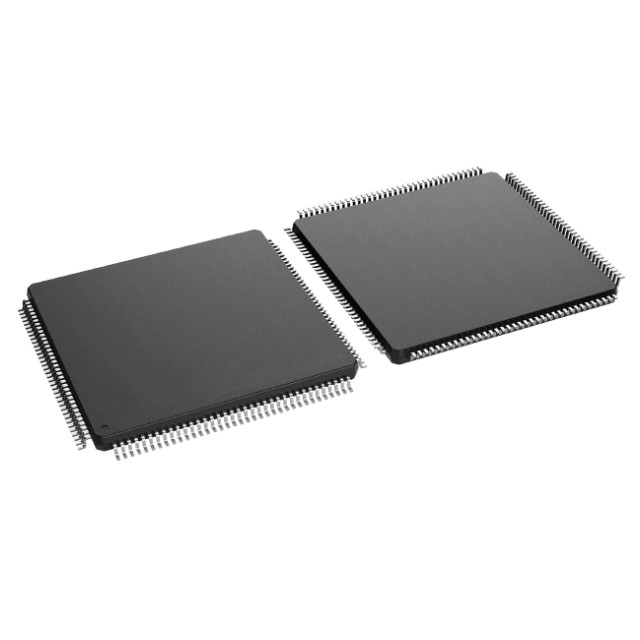

The TM4C1233H6PGEI7R device is a 32-bit microcontroller based on Arm Cortex-M4F and belongs to the Tiva™ C series of MCUS. The TM4C1233H6PGEI7R adopts a 144-pin LQFP package and features an 80MHz frequency, 256KB flash memory, 32KB RAM, CAN, RTC and USB-D.

Technical Specification

Product: TM4C1233H6PGEI7R

Core processor: ARM® Cortex®-M4F

Kernel specification: 32-bit single-core

Speed: 80MHz

Connection capabilities: CANbus, I2C, IrDA, Microwire, SPI, SSI, UART/USART, USB

Peripherals: Under-voltage detection/reset, DMA, POR, WDT

I/O number: 105

Program storage capacity: 256KB (256K x 8)

Program memory type: Flash memory

EEPROM capacity: 2K x 8

RAM size: 32K x 8

Voltage - Power Supply (Vcc/Vdd) : 1.08V - 3.63V

Data converter: A/D 24x12b

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Supplier device package: 144-LQFP (20x20)

Application field

The TM4C1233H6PGEI7R is suitable for applications that require cost control while also demanding extensive control and connection capabilities, such as:

■ Low-power handheld intelligent devices

■ Game equipment

■ Household and commercial monitoring

■ Motion control

■ Medical devices

■ Testing and measuring instruments

■ Factory Automation

■ Fire alarm and security equipment

■ Smart energy/Smart grid solutions

■ Intelligent lighting control

■ Transportation Industry
