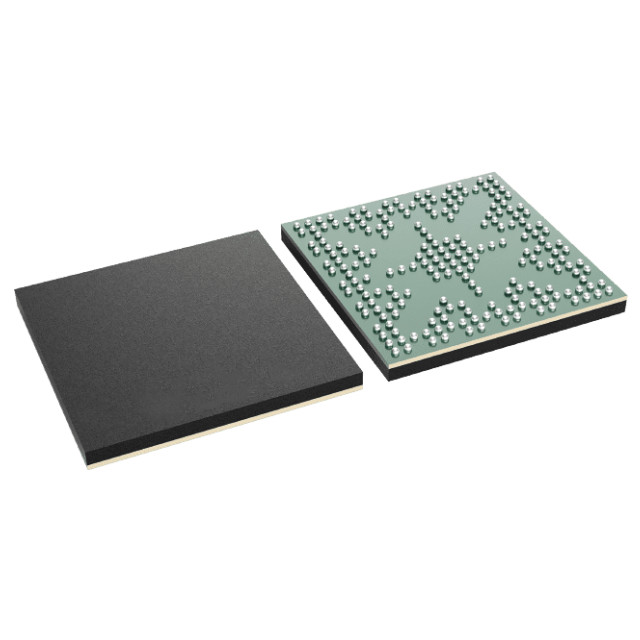

TM4C129LNCZADT3 is a 32-bit MCU based on Arm Cortex-M4F, featuring a frequency of 120 MHZ, 1MB flash memory, 256KB RAM, USB, ENET MAC+PHY, LCD and AES, etc. The microcontroller is packaged in 212-NFBGA, has peripherals including PWM, WDT, DMA, supports multiple power management functions, and operates within a temperature range of -40°C to 105°C‌.

Key specifications

Core processor: ARM® Cortex®-M4F

Kernel specification: 32-bit single-core

Speed: 120MHz

Connection capabilities: CANbus, EBI/EMI, Ethernet, I2C, IrDA, QSSI, UART/USART, USB OTG

Peripherals: Under-voltage detection/reset, DMA, motion control PWM, POR, PWM, WDT

I/O number: 140

Program storage capacity: 1MB (1M x 8)

Program memory type: Flash memory

EEPROM capacity: 6K x 8

RAM size: 256K x 8

Voltage - Power Supply (Vcc/Vdd) : 2.97V - 3.63V

Data converter: A/D 24x12b

Oscillator type: Internal

Operating temperature: -40°C to 105°C (TA)

Installation type: Surface mount type

Supplier device packaging: 212-NFBGA (10x10)

Application field

The TM4C129LNCZADT3 is suitable for industrial control, automotive electronics, smart home and other fields that require high-performance processing and multiple communication interfaces. Its high integration and rich peripheral support make it perform well in applications that require high reliability and security.
