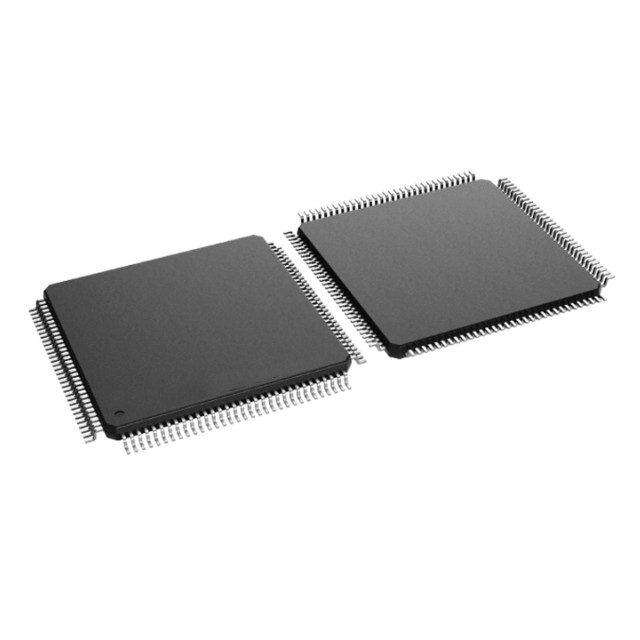

The TM4C129ENCPDTT3R microcontroller is a 32-bit MCU based on Arm Cortex-M4F launched by (TI), featuring a frequency of 120 MHZ, 1MB of flash memory, 256KB of RAM, USB, ENET MAC+PHY and AES. The TM4C129ENCPDTT3R has the following key parameters:

Core processor: ARM® Cortex®-M4F

Kernel specification: 32-bit single-core

Speed: 120MHz

Connection capabilities: CANbus, EBI/EMI, Ethernet, I2C, IrDA, QSSI, UART/USART, USB OTG

Peripherals: Under-voltage detection/reset, DMA, motion control PWM, POR, PWM, WDT

I/O number: 90

Program storage capacity: 1MB (1M x 8)

Program memory type: Flash memory

EEPROM capacity: 6K x 8

RAM size: 256K x 8

Voltage - Power Supply (Vcc/Vdd) : 2.97V - 3.63V

Data converter: A/D 20x12b

Oscillator type: Internal

Operating temperature: -40°C to 105°C (TA)

Installation type: Surface mount type

Supplier device packaging: 128-TQFP (14x14)

Package/Shell: 128-TQFP

Application scenarios

The TM4C129ENCPDTT3R microcontroller is suitable for application scenarios that require high-performance processing and multiple communication interfaces, such as industrial control, automotive electronics, and communication equipment. Its high frequency and rich interface support make it perform well in systems that require high-speed data processing and multiple peripheral connections. In addition, this microcontroller also features an internal oscillator and power-off detection/reset function, further enhancing its reliability and stability.
