The KSD794AYSTU device is an NPN epitaxial silicon transistor manufactured by onsemi. This product has the following main specifications:

Transistor type: NPN

Current - Collector (Ic) (maximum value) : 3 A

Voltage - Emitter breakdown (maximum value) : 60 V

Vce saturation voltage drop (maximum value) at different Ib and Ic levels: 2V@150mA, 1.5A

Current - Collector cut-off (maximum value) : 1µA (ICBO)

DC current gain (hFE) (minimum value) at different ics and Vce: 160 @ 500mA, 5V

Power - Maximum: 1 W

Frequency - Transition: 60MHz

Operating temperature: 150°C (TJ

Installation type: Through hole

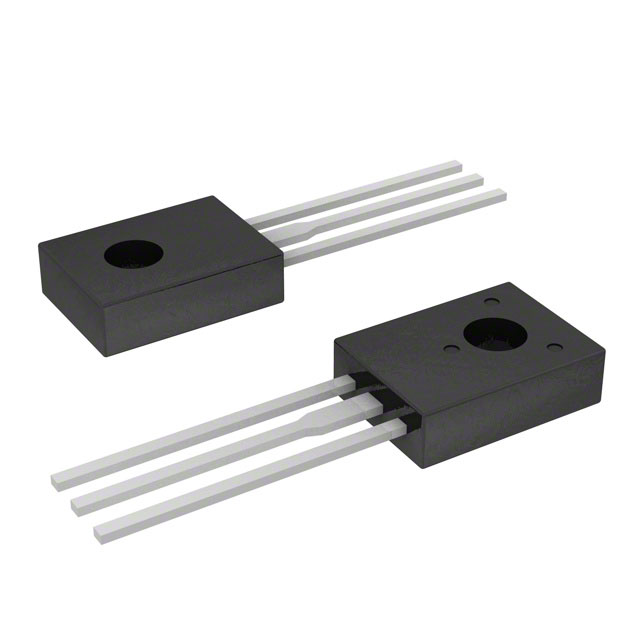

Packaging/Shell: TO-126-3

Application field

The KSD794AYSTU transistor is primarily used in audio power amplifiers and can be used as a complementary device to the KSB744/KSB744A in a variety of audio amplification circuits ‌.
