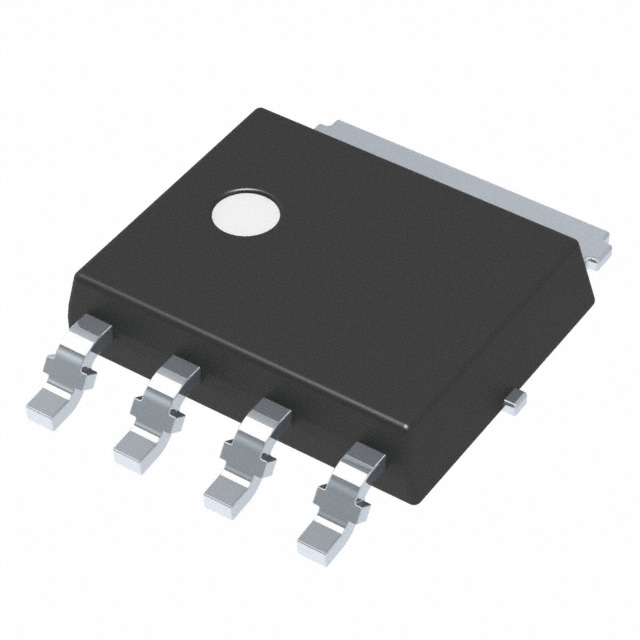

The NSS40301CTWG low VCE(sat) transistor is a micro surface mount device with an extremely low saturation voltage (VCE (sat)) and high current gain capability. The NSS40301CTWG is designed for low-voltage, high-speed switching applications where cost-effective and efficient energy control must be achieved. Typical applications include DC-DC converters and power management in portable and battery-powered products, such as cellular and cordless phones, PDAs, computers, printers, digital cameras and MP3 players.

Core parameters

Transistor type: NPN

Current - collector (Ic) (maximum value) : 3 A

Voltage - collector and emitter breakdown (maximum value) : 40 V

Vce saturation voltage drop (maximum value) at different Ib and Ic: 200mV @ 300mA, 3A

Current - collector cut-off (maximum value) : 100nA (ICBO)

DC current gain (hFE) (minimum value) at different ics and Vce: 200@1A, 1V

Power - Maximum: 2 W

Frequency - transition: 215MHz

Operating temperature: -55°C to 150°C (TJ)

Installation type: Surface mount type

Package/Housing: LFPAK4 (5x6)

Typical applications

Load switch

Battery charging

External transport transistor

DC-DC converter

Complementary driver

Current expansion and low dropout regulation

Cathode fluorescent lamp drive

Peripheral drivers - LED, motor and relay
