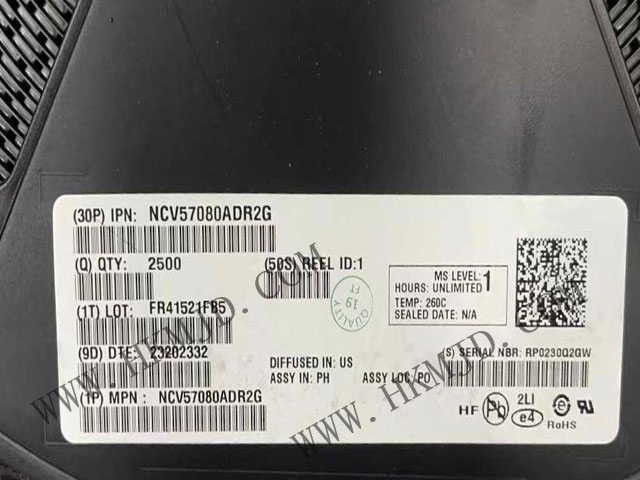

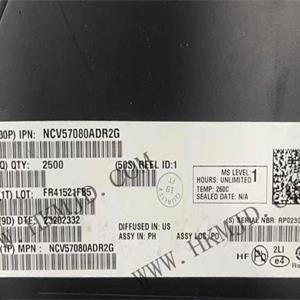

NCV57080ADR2G is a high-current single-channel IGBT gate driver featuring 3.75 kVrms internal electrical isolation, designed for high system efficiency and reliability in high-power applications. Supporting a wide input bias voltage and signal level range from 3.3V to 20V, the NCV57080ADR2G is housed in a narrow-body SOIC-8 package.

NCV57080ADR2G Features

• High peak output current (+6.5 A/-6.5 A)

• Low clamping voltage drop, preventing gate misfiring without requiring a negative supply (Version A)

• Short propagation delay with precise matching

• Clamps IGBT/MOSFET gate during short-circuit conditions

• Active gate pull-down for IGBT/MOSFET

• Strict undervoltage lockout threshold for enhanced bias flexibility

• Wide bias voltage range supporting negative VEE2 (Version B)

• 3.3V, 5V and 15V logic inputs

• 3.75kVRMS VISO (I-O) (meets UL1577 requirements)

• Safety and regulatory approvals:

• UL1577 certified, 3750 VAC RMS for 1 minute

• DIN VDE V 0884−11 certification pending, 870 VPK working insulation voltage

• High transient immunity

• High electromagnetic immunity

• NCV prefix for automotive and other applications requiring special field and control modifications; AEC−Q100 qualified with PPAP support

• Lead-free, halogen-free/BFR-free, RoHS compliant

NCV57080ADR2G Specifications

Number of Channels:    1 Channel

Insulation Voltage:    3.75 kVrms

Minimum Operating Temperature:    -40°C

Maximum Operating Temperature:    +125°C

Power Dissipation (Pd):    1.3 W

Propagation Delay – Maximum:    60 ns

Rise Time:    13 ns

Fall Time:    13 ns

Configuration:    Non-Inverting

Input Voltage – Maximum:    20 V

Input Voltage - Minimum:    3.3 V

Maximum Continuous Output Current:    6.5 A

Number of Drivers:    1 Driver

Number of Outputs:    1 Output

Output Current:    6.5 A

Shutdown:    No Shutdown

Supply Voltage - Maximum:    20 V

Supply Voltage - Minimum:    3.3 V

Typical Applications

• Motor Control

• Uninterruptible Power Supply (UPS)

• Automotive Applications

• Industrial Power Supplies

• Solar Inverters

• Heating, Ventilation and Air Conditioning Systems
