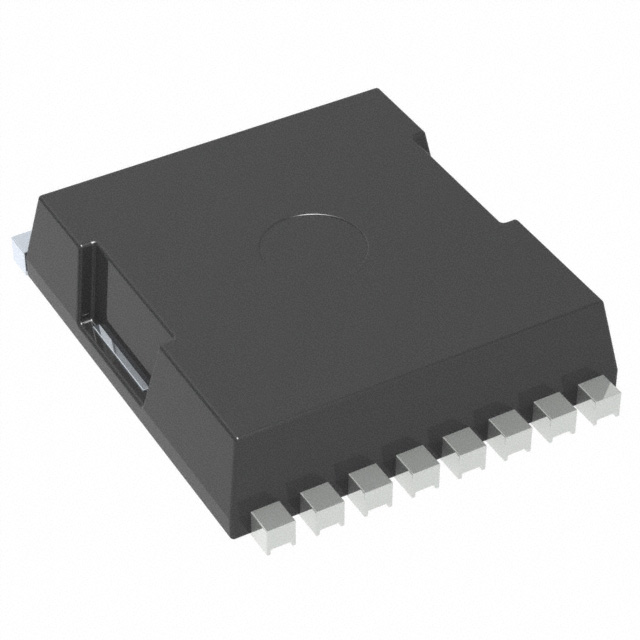

The NTBL150N60S5H is A 600 V, 19 A n-channel power MOSFET belonging to the (ON) SUPERFET V MOSFET FAST family, which has extremely low switching losses in hard switching applications, helping to maximize system efficiency. Furthermore, the TOLL package offers improved thermal performance and excellent switching performance by providing a Kelvin Source configuration and a lower parasitic source inductance.

Technical Specification

FET type: N channel

Technology: MOSFET (Metal Oxide)

Drain-source voltage (Vdss) : 600 V

Current at 25°C - Continuous drain (Id) : 19A (Tc)

Driving voltage (maximum Rds On, minimum Rds On) : 10V

The on-resistance (maximum value) at different ids and Vgs: 150 milliohms @ 9.5A, 10V

Vgs(th) (maximum value) at different ids: 4.3V@1.8mA

Gate charge (Qg) (maximum value) at different Vgs: 29.8 nC@9.5 V

Vgs (maximum value) : ±30V

Input capacitance (Ciss) (maximum value) at different Vds: 1713 pF @ 400 V

FET function: -

Power dissipation (maximum) : 133W (Tc)

Operating temperature: -55°C to 150°C (TJ)

Installation type: Surface mount type

Supplier device packaging: 8-HPSOF

Target application

• Telecommunication/server power supply

• Electric vehicle charger/UPS/solar energy/industrial power supply
