The TAC5112WQRTVRQ1 is a low-power automotive stereo audio codec featuring 2VRMS differential input, 105dB stereo ADC and 2VRMS differential output, 114dB stereo or 1VRMS single-ended output, and 107dB four-channel DAC. The TAC5112WQRTVRQ1 supports differential and single-ended input and output. The ADC supports line/microphone input signals and has AC or DC coupling configuration options. The DAC output can be configured as a line output or a headphone load. This DAC can provide up to 62.5mW of driving power for a 16Ω headphone load.

The key parameters of TAC5112WQRTVRQ1

Type: Stereo audio

Data interfaces: DSP, I2C, I2S, PCM, SPI

Resolution (bit) : 16b, 20b, 24b, 32b

ADC/DAC number: 2/2

Trigonometric integral: Yes

Signal-to-noise ratio, ADC/DAC (db) (typical values) : 100/106

Dynamic range, typical values of ADC/DAC (db) : 100/106

Voltage - Power supply, simulation: 1.65V to 1.95V, 3V to 3.6V

Voltage - Power supply, figures: 1.08V - 1.32V, 1.65V - 1.95V, 3V - 3.6V

Operating temperature: -40°C to 125°C (TA)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount, wettable side wings

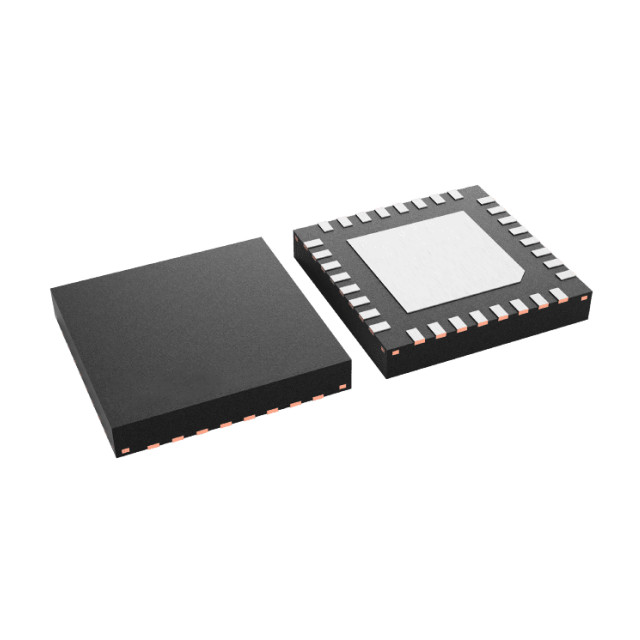

Package/Shell: 32-WFQFN

Typical applications

• Emergency Call (eCall)

• Remote information processing control unit

• Active noise reduction for automobiles

• Car audio host
